| Quantity: | |
|---|---|
AC12025
| Model | Bearing System | Voltage VAC | Rreq. Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow | Phase | Capcitor | |
| M3/hr | CFM | ||||||||||
| HB12025HA1S(B) | 100-125 | 50/60 | 0.25 | 21 | 2300/2700 | 39/42 | 96/112 | 57/66 | 1 | / | |
| HB12025A2S(B) | 200-240 | 50/60 | 0.13 | 21 | 2300/2700 | 39/42 | 96/112 | 57/66 | 1 | / | |
| HB12025MA1S(B) | 100-125 | 50/60 | 0.16 | 16 | 1800/2300 | 31/36 | 76/95 | 76/95 | 1 | / | |
| HB12025MA2S(B) | 200-240 | 50/60 | 0.08 | 16 | 1800/2300 | 31/36 | 76/95 | 76/95 | 1 | / | |
Key Features:

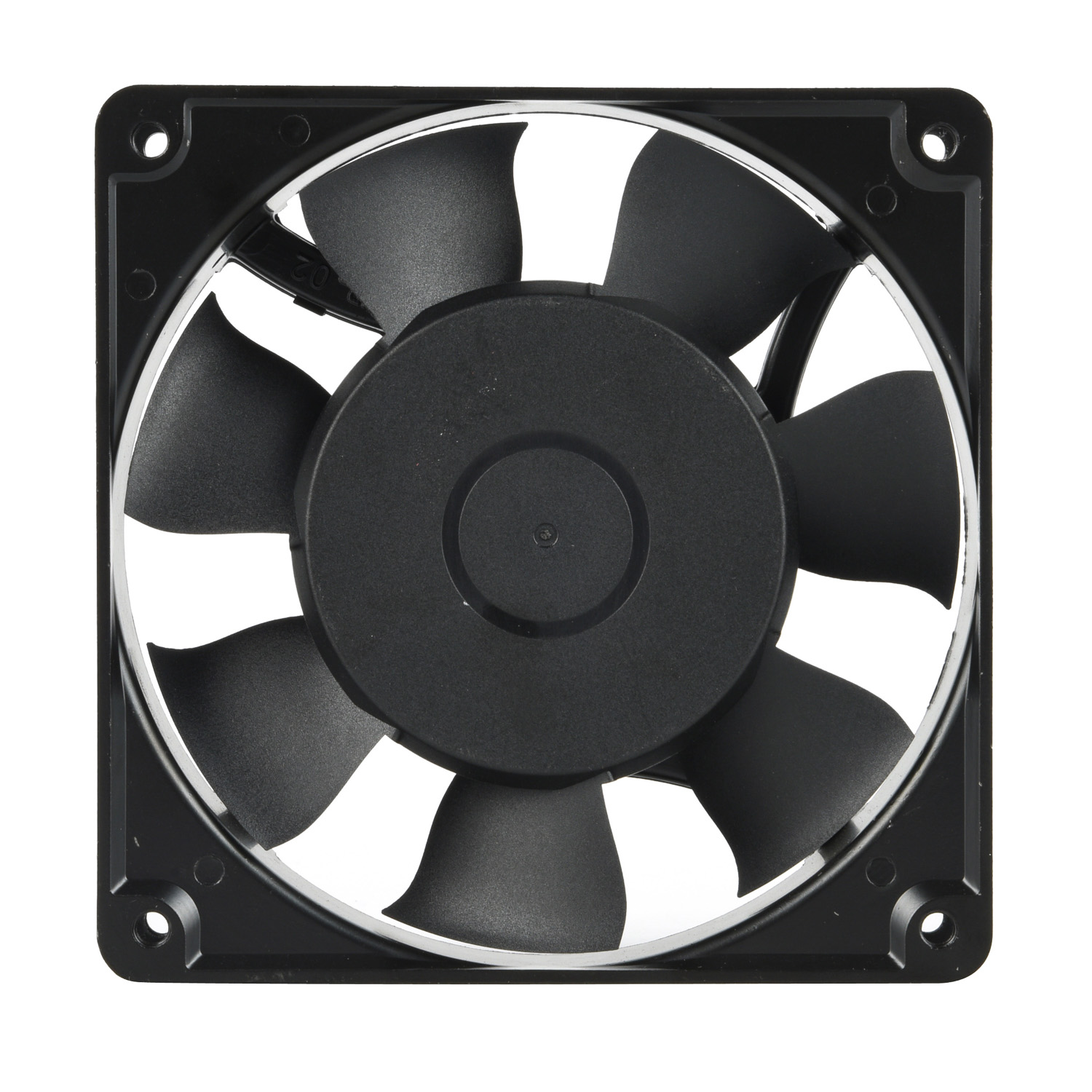

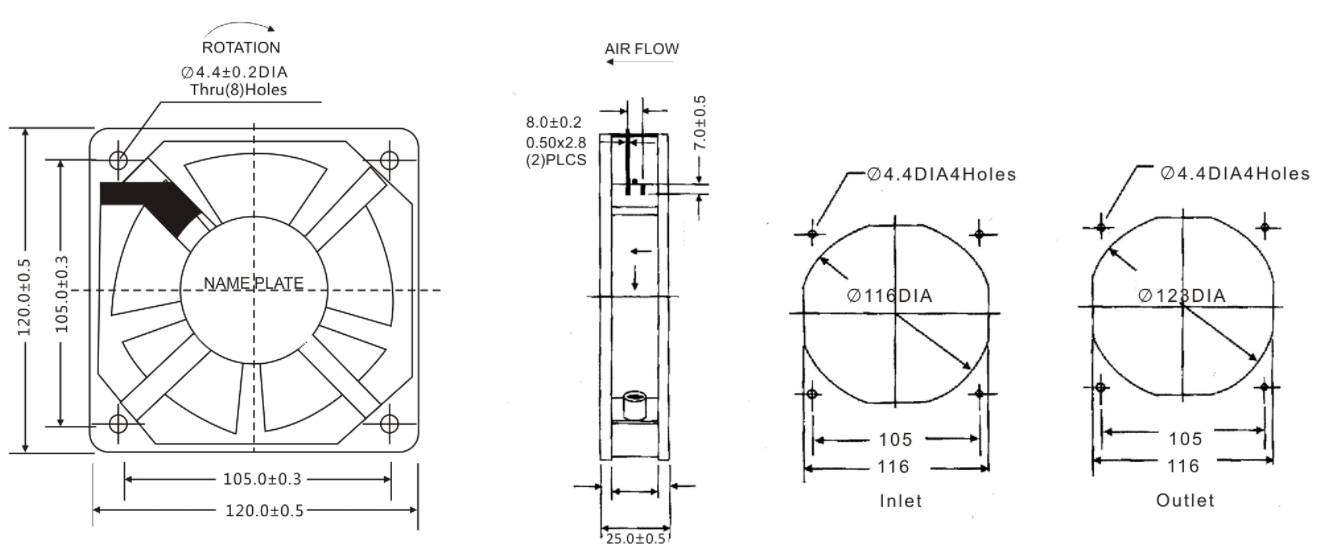

Large Size for Enhanced Airflow: The 120mm x 120mm x 25mm dimension ensures superior air movement for effective cooling.
Optimized for Quiet Operation: Designed to deliver significant airflow while keeping noise levels minimal.
Robust and Reliable: Constructed to withstand demanding conditions, ideal for industrial and high-performance environments.
Energy Efficient: Provides powerful cooling capabilities with lower energy consumption.
Applications:
Industrial Systems: Ideal for maintaining optimal temperatures in heavy-duty industrial machinery.
Automotive Cooling: Perfect for automotive applications, offering reliable performance under various conditions.
High-Performance Electronics: Ensures effective cooling in advanced electronics, including servers and communication devices.
Power Electronics: Provides stable cooling, essential for the longevity and efficiency of power electronic components.
Solar System Cooling: Enhances solar equipment's efficiency and durability by maintaining proper operating temperatures.
| Model | Bearing System | Voltage VAC | Rreq. Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow | Phase | Capcitor | |
| M3/hr | CFM | ||||||||||
| HB12025HA1S(B) | 100-125 | 50/60 | 0.25 | 21 | 2300/2700 | 39/42 | 96/112 | 57/66 | 1 | / | |
| HB12025A2S(B) | 200-240 | 50/60 | 0.13 | 21 | 2300/2700 | 39/42 | 96/112 | 57/66 | 1 | / | |
| HB12025MA1S(B) | 100-125 | 50/60 | 0.16 | 16 | 1800/2300 | 31/36 | 76/95 | 76/95 | 1 | / | |
| HB12025MA2S(B) | 200-240 | 50/60 | 0.08 | 16 | 1800/2300 | 31/36 | 76/95 | 76/95 | 1 | / | |
Key Features:
Large Size for Enhanced Airflow: The 120mm x 120mm x 25mm dimension ensures superior air movement for effective cooling.
Optimized for Quiet Operation: Designed to deliver significant airflow while keeping noise levels minimal.
Robust and Reliable: Constructed to withstand demanding conditions, ideal for industrial and high-performance environments.
Energy Efficient: Provides powerful cooling capabilities with lower energy consumption.
Applications:
Industrial Systems: Ideal for maintaining optimal temperatures in heavy-duty industrial machinery.
Automotive Cooling: Perfect for automotive applications, offering reliable performance under various conditions.
High-Performance Electronics: Ensures effective cooling in advanced electronics, including servers and communication devices.
Power Electronics: Provides stable cooling, essential for the longevity and efficiency of power electronic components.
Solar System Cooling: Enhances solar equipment's efficiency and durability by maintaining proper operating temperatures.
