| Quantity: | |
|---|---|
AC17238
| Model | Bearing System | Voltage VAC | Rreq.Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow | Phase | Capcitor | |
| M3/hr | CFM | ||||||||||
| HB17040HA1B-C | 100-125 | 50/60 | 0.35/0.40 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 3.3ufi/250v | |
| HB17040HA2B-C | 200-240 | 50/60 | 0.2/0.22 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 1.0uf/450v | |
| HB17040HA3B | 380-420 | 50/60 | 0.08 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 3 | / | |
| HB17040HA3B-C | 380-420 | 50/60 | 0.10 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 0.47uf/450v | |
Key Features:

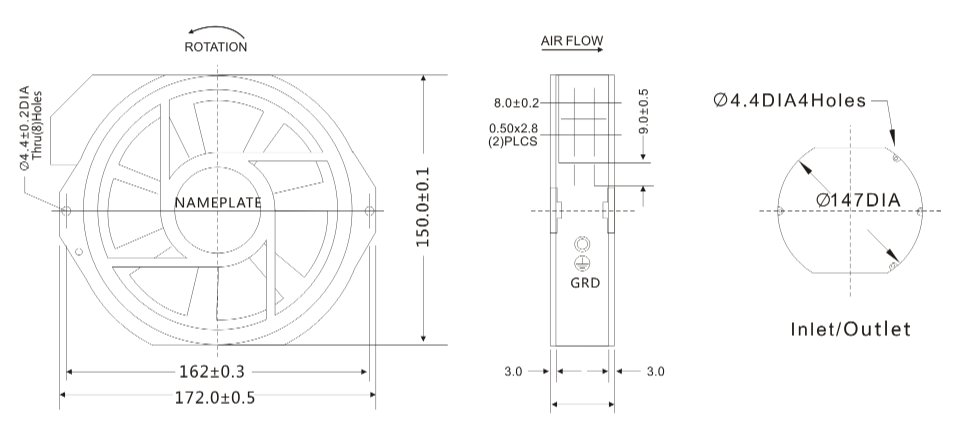

Unique Size for Maximum Effectiveness: The unconventional 172mm x 150mm x 38mm design ensures powerful and efficient airflow for effective ventilation and exhaust.
Quiet, Efficient Operation: Designed for high performance with low noise output, maintaining a comfortable and productive environment.
Robust Build for Industrial Durability: Crafted to withstand rigorous industrial conditions, guaranteeing longevity and consistent performance.
Energy-Saving Capabilities: Delivers outstanding cooling and ventilation while optimizing energy usage.
Applications:
Industrial Cooling and Ventilation: Perfect for large-scale industrial machinery requiring robust cooling and efficient air movement.
Advanced Electronic Systems: Ideal for managing heat in high-performance electronics and data centers.
Automotive Exhaust Systems: Suitable for automotive applications, ensuring optimal temperature control and exhaust efficiency.
Solar System and Power Electronics: Enhances the performance and lifespan of solar equipment and power electronic components through effective heat management.
| Model | Bearing System | Voltage VAC | Rreq.Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow | Phase | Capcitor | |
| M3/hr | CFM | ||||||||||
| HB17040HA1B-C | 100-125 | 50/60 | 0.35/0.40 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 3.3ufi/250v | |
| HB17040HA2B-C | 200-240 | 50/60 | 0.2/0.22 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 1.0uf/450v | |
| HB17040HA3B | 380-420 | 50/60 | 0.08 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 3 | / | |
| HB17040HA3B-C | 380-420 | 50/60 | 0.10 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 0.47uf/450v | |
Key Features:
Unique Size for Maximum Effectiveness: The unconventional 172mm x 150mm x 38mm design ensures powerful and efficient airflow for effective ventilation and exhaust.
Quiet, Efficient Operation: Designed for high performance with low noise output, maintaining a comfortable and productive environment.
Robust Build for Industrial Durability: Crafted to withstand rigorous industrial conditions, guaranteeing longevity and consistent performance.
Energy-Saving Capabilities: Delivers outstanding cooling and ventilation while optimizing energy usage.
Applications:
Industrial Cooling and Ventilation: Perfect for large-scale industrial machinery requiring robust cooling and efficient air movement.
Advanced Electronic Systems: Ideal for managing heat in high-performance electronics and data centers.
Automotive Exhaust Systems: Suitable for automotive applications, ensuring optimal temperature control and exhaust efficiency.
Solar System and Power Electronics: Enhances the performance and lifespan of solar equipment and power electronic components through effective heat management.
