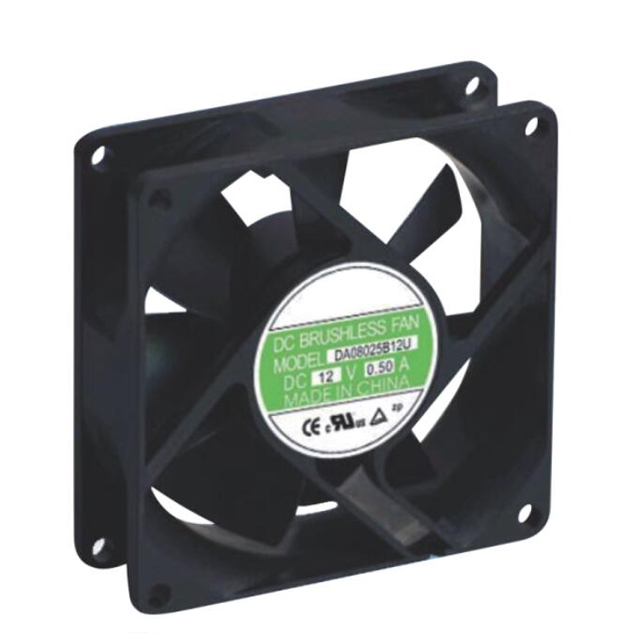

DC8025
| Mode | #Bearing Type | Rated Voltage | Qperating Voltage | Input Current | Input Power | Speed | MaxAir Flow | Max Static Pressure | Noise | Weigh | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H₂O | Pa | dB-A | g |
| DA08025#12U | B.S | 12 | 7.0-13.8 | 0.50 | 6.00 | 4000 | 54.14 | 1.53 | 0.25 | 62.37 | 40.00 | 58.00 |
| DA08025#12H | B.S | 12 | 7.0-13.8 | 0.40 | 4.80 | 3500 | 50.35 | 1.43 | 0.22 | 54.82 | 36.00 | 58.00 |
| DA08025#12M | B.S | 12 | 7.0-13.8 | 0.30 | 3.60 | 3000 | 39.98 | 1.13 | 0.14 | 34.81 | 31.00 | 58.00 |
| DA08025#12L | B.S | 12 | 7.0-13.8 | 0.20 | 2.40 | 2500 | 35.67 | 1.01 | 0.11 | 27.65 | 25.00 | 58.00 |
| DA08025#12D | B.S | 12 | 7.0-13.8 | 0.10 | 1.20 | 2000 | 27.39 | 0.78 | 0.07 | 18.14 | 22.00 | 58.00 |
| DA08025#24U | B.S | 24 | 14.0-27.6 | 0.40 | 9.60 | 4000 | 54.14 | 1.53 | 0.25 | 62.37 | 40.00 | 58.00 |
| DA08025#24H | B.S | 24 | 14.0-27.6 | 0.30 | 7.20 | 3500 | 50.35 | 1.43 | 0.22 | 54.82 | 36.00 | 58.00 |
| DA08025#24M | B.S | 24 | 14.0-27.6 | 0.20 | 4.80 | 3000 | 39.98 | 1.13 | 0.14 | 34.81 | 31.00 | 58.00 |
| DA08025#24L | B.S | 24 | 14.0-27.6 | 0.15 | 3.60 | 2500 | 35.67 | 1.01 | 0.11 | 27.65 | 25.00 | 58.00 |
| DA08025#24D | B.S | 24 | 28.0-56.0 | 0.10 | 2.40 | 2000 | 27.39 | 0.78 | 0.07 | 18.14 | 22.00 | 58.00 |
| DA08025#48U | B.S | 48 | 28.0-56.0 | 0.30 | 14.40 | 4000 | 54.14 | 1.53 | 0.25 | 62.37 | 40.00 | 58.00 |
| DA08025#48H | B.S | 48 | 28.0-56.0 | 0.25 | 12.00 | 3500 | 50.35 | 1.43 | 0.22 | 54.82 | 36.00 | 58.00 |
| DA08025#48M | B.S | 48 | 28.0-56.0 | 0.20 | 9.60 | 3000 | 39.98 | 1.13 | 0.14 | 34.81 | 31.00 | 58.00 |
| DA08025#48L | B.S | 48 | 28.0-56.0 | 0.15 | 7.20 | 2500 | 35.67 | 1.01 | 0.11 | 27.65 | 25.00 | 58.00 |
Key Features:
Optimized Size for Efficiency: The 80mm dimension offers a perfect blend of compact design and powerful air circulation.
Superior Cooling Capability: Engineered for high-performance cooling, effectively managing temperatures in various settings.
Quiet Operation: Provides efficient cooling while maintaining a low noise level.
Robust and Reliable: Made with top-grade materials, ensuring durability and consistent performance.
Simple Installation: Easy to install, providing a hassle-free setup for any application.
Broad Application Range: Suitable for a wide array of cooling needs, from computer cases to industrial machinery.
Applications:
Computer Case Ventilation: Excellent for PC cases, enhancing airflow to keep systems cool and efficient.
Industrial Equipment Cooling: Ideal for maintaining optimal temperatures in industrial machinery and components.
Medium-Sized Enclosure Ventilation: Perfect for medium-sized enclosures, ensuring effective air movement and temperature control.
