| Quantity: | |
|---|---|

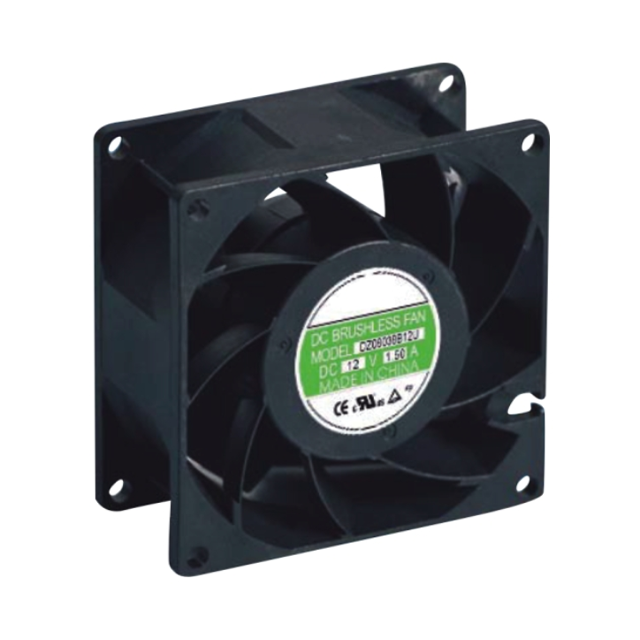

DC8038
| Mode | #Bearing Type | Rated Voltage | Qperating Voltage | Inpu Current | Input Power | Speed | MaxAir Flow | Max Static Pressure | Noise | Weigh | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H₂O | Pa | dB-A | g |
| DZ08038#12U | B | 12 | 7.0~13.8 | 1.50 | 18.00 | 6500 | 90.60 | 2.57 | 0.99 | 245.56 | 59.00 | 153.00 |
| DZ08038#12H | B | 12 | 7.0-13.8 | 0.90 | 10.80 | 5500 | 74.46 | 2.11 | 0.68 | 168.48 | 53.00 | 153.00 |
| DZ08038#12M | B | 12 | 7.0-13.8 | 0.60 | 7.20 | 4500 | 60.08 | 1.70 | 0.46 | 114.74 | 47.00 | 153.00 |
| DZ08038#12L | B | 12 | 7.0-13.8 | 0.40 | 4.80 | 3500 | 45.11 | 1.28 | 0.26 | 65.70 | 43.00 | 153.00 |
| DZ08038#24U | B | 24 | 14.0-27.6 | 0.80 | 19.20 | 6500 | 90.60 | 2.57 | 0.99 | 245.56 | 59.00 | 153.00 |
| DZ08038#24H | B | 24 | 14.0-27.6 | 0.50 | 12.00 | 5500 | 74.46 | 2.11 | 0.68 | 168.48 | 53.00 | 153.00 |
| DZ08038#24M | B | 24 | 14.0-27.6 | 0.30 | 7.20 | 4500 | 60.08 | 1.70 | 0.46 | 114.74 | 47.00 | 153.00 |
| DZ08038#24L | B | 24 | 14.0-27.6 | 0.20 | 4.80 | 3500 | 45.11 | 1.28 | 0.26 | 65.70 | 43.00 | 153.00 |
| DZ08038#48U | B | 48 | 28.0~56.0 | 0.50 | 24.00 | 6500 | 90.60 | 2.57 | 0.99 | 245.56 | 59.00 | 153.00 |
| DZ08038#48H | B | 48 | 28.0-56.0 | 0.30 | 14.40 | 5500 | 74.46 | 2.11 | 0.68 | 168.48 | 53.00 | 153.00 |
| DZ08038#48M | B | 48 | 28.0-56.0 | 0.20 | 9.60 | 4500 | 60.08 | 1.70 | 0.46 | 114.74 | 47.00 | 153.00 |
| DZ08038#48L | B | 48 | 28.0-56. | 0.10 | 4.80 | 3500 | 45.11 | 1.28 | 0.26 | 65.70 | 43.00 | 153.00 |
Key Features:
High-Performance Cooling: Delivers powerful airflow for effective temperature management in industrial environments.
Sturdy Build Quality: Constructed with premium materials, ensuring longevity and reliability in challenging conditions.
Quiet Operation: Designed to minimize noise, ideal for environments where sound levels are a concern.
Efficient Design: Balances power and efficiency for optimal cooling without excessive energy consumption.
Easy Installation: Features user-friendly installation, facilitating quick setup and maintenance.
Versatile Use: Adept at handling a variety of cooling tasks across different settings.
Applications:
Industrial Cooling: Perfect for cooling heavy-duty machinery and equipment in industrial settings.
Server Room Ventilation: Ensures optimal airflow in server rooms and data centers.
Large-Scale Electronics: Suitable for large electronic systems requiring consistent cooling to maintain performance.
| Mode | #Bearing Type | Rated Voltage | Qperating Voltage | Inpu Current | Input Power | Speed | MaxAir Flow | Max Static Pressure | Noise | Weigh | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H₂O | Pa | dB-A | g |
| DZ08038#12U | B | 12 | 7.0~13.8 | 1.50 | 18.00 | 6500 | 90.60 | 2.57 | 0.99 | 245.56 | 59.00 | 153.00 |
| DZ08038#12H | B | 12 | 7.0-13.8 | 0.90 | 10.80 | 5500 | 74.46 | 2.11 | 0.68 | 168.48 | 53.00 | 153.00 |
| DZ08038#12M | B | 12 | 7.0-13.8 | 0.60 | 7.20 | 4500 | 60.08 | 1.70 | 0.46 | 114.74 | 47.00 | 153.00 |
| DZ08038#12L | B | 12 | 7.0-13.8 | 0.40 | 4.80 | 3500 | 45.11 | 1.28 | 0.26 | 65.70 | 43.00 | 153.00 |
| DZ08038#24U | B | 24 | 14.0-27.6 | 0.80 | 19.20 | 6500 | 90.60 | 2.57 | 0.99 | 245.56 | 59.00 | 153.00 |
| DZ08038#24H | B | 24 | 14.0-27.6 | 0.50 | 12.00 | 5500 | 74.46 | 2.11 | 0.68 | 168.48 | 53.00 | 153.00 |
| DZ08038#24M | B | 24 | 14.0-27.6 | 0.30 | 7.20 | 4500 | 60.08 | 1.70 | 0.46 | 114.74 | 47.00 | 153.00 |
| DZ08038#24L | B | 24 | 14.0-27.6 | 0.20 | 4.80 | 3500 | 45.11 | 1.28 | 0.26 | 65.70 | 43.00 | 153.00 |
| DZ08038#48U | B | 48 | 28.0~56.0 | 0.50 | 24.00 | 6500 | 90.60 | 2.57 | 0.99 | 245.56 | 59.00 | 153.00 |
| DZ08038#48H | B | 48 | 28.0-56.0 | 0.30 | 14.40 | 5500 | 74.46 | 2.11 | 0.68 | 168.48 | 53.00 | 153.00 |
| DZ08038#48M | B | 48 | 28.0-56.0 | 0.20 | 9.60 | 4500 | 60.08 | 1.70 | 0.46 | 114.74 | 47.00 | 153.00 |
| DZ08038#48L | B | 48 | 28.0-56. | 0.10 | 4.80 | 3500 | 45.11 | 1.28 | 0.26 | 65.70 | 43.00 | 153.00 |
Key Features:
High-Performance Cooling: Delivers powerful airflow for effective temperature management in industrial environments.
Sturdy Build Quality: Constructed with premium materials, ensuring longevity and reliability in challenging conditions.
Quiet Operation: Designed to minimize noise, ideal for environments where sound levels are a concern.
Efficient Design: Balances power and efficiency for optimal cooling without excessive energy consumption.
Easy Installation: Features user-friendly installation, facilitating quick setup and maintenance.
Versatile Use: Adept at handling a variety of cooling tasks across different settings.
Applications:
Industrial Cooling: Perfect for cooling heavy-duty machinery and equipment in industrial settings.
Server Room Ventilation: Ensures optimal airflow in server rooms and data centers.
Large-Scale Electronics: Suitable for large electronic systems requiring consistent cooling to maintain performance.
