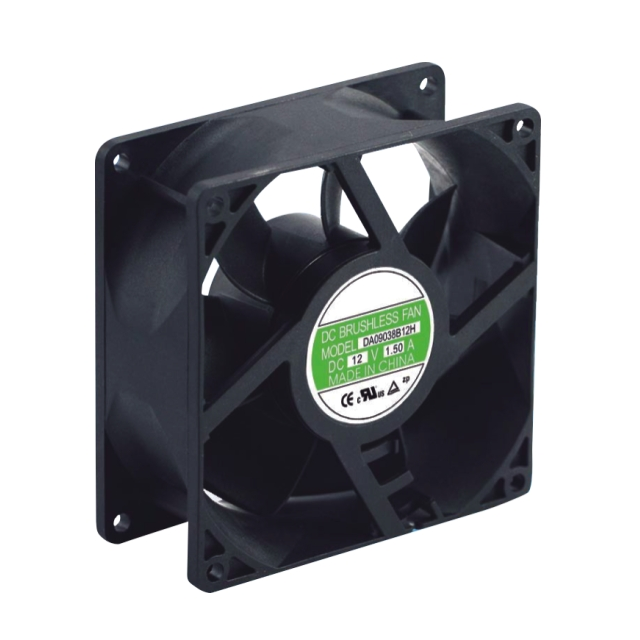

DC9238
| Mode | #Bearing Type | Rated Voltage | Qperating Voltage | Inpu Current | Input Power | Speed | MaxAir Flow | Max Static Pressure | Noise | Weigh | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H₂O | Pa | dB-A | g |
| DA09238#12U | B | 12 | 7.0-13.8 | 2.00 | 24.00 | 6000 | 125.10 | 3.54 | 0.93 | 231.35 | 63.00 | 245.00 |
| DA09238#12H | B | 12 | 7.0-13.8 | 1.60 | 19.20 | 5000 | 101.92 | 2.89 | 0.82 | 204.18 | 55.00 | 245.00 |
| DA09238#12M | B | 12 | 7.0-13.8 | 1.30 | 15.60 | 4000 | 83.31 | 2.36 | 0.61 | 151.89 | 52.00 | 245.00 |
| DA09238#12L | B | 12 | 7.0-13.8 | 1.10 | 13.20 | 3000 | 67.23 | 1.90 | 0.44 | 109.56 | 49.00 | 245.00 |
| DA09238#24U | B | 24 | 14.0-27.6 | 1.00 | 24.00 | 6000 | 125.10 | 3.54 | 0.93 | 231.35 | 63.00 | 245.00 |
| DA09238#24H | B | 24 | 14.0-27.6 | 0.80 | 19.20 | 5000 | 101.92 | 2.89 | 0.82 | 204.18 | 55.00 | 245.00 |
| DA09238#24M | B | 24 | 14.0-27.6 | 0.60 | 14.40 | 4000 | 83.31 | 2.36 | 0.61 | 151.89 | 52.00 | 245.00 |
| DA09238#24L | B | 24 | 14.0-27.6 | 0.50 | 12.00 | 3000 | 67.23 | 1.90 | 0.44 | 109.56 | 49.00 | 245.00 |
| DA09238#48U | B | 48 | 28.0-56.0 | 0.50 | 24.00 | 6000 | 125.10 | 3.54 | 0.93 | 231.35 | 63.00 | 245.00 |
| DA09238#48H | B | 48 | 28.0-56.0 | 0,40 | 19.20 | 5000 | 101.92 | 2.89 | 0.82 | 204.18 | 55.00 | 245.00 |
| DA09238#48M | B | 48 | 28,0-56.0 | 0.30 | 1440.00 | 4000 | 83.31 | 2.36 | 0.61 | 151.89 | 52.00 | 245.00 |
| DA09238#48L | B | 48 | 28.0-56.0 | 0.25 | 12.00 | 3000 | 67.23 | 1.90 | 0.44 | 109.56 | 49.00 | 245.00 |
Key Features:
High-Flow Cooling: Provides exceptional airflow, ideal for high-demand cooling situations.
Robust and Reliable: Made with top-grade materials to withstand tough conditions and continuous use.
Quiet Efficiency: Delivers powerful cooling while maintaining a low noise profile.
Energy-Saving Design: Optimized for efficient performance, reducing power consumption.
Ease of Installation: Simple and straightforward installation process, compatible with various setups.
Broad Compatibility: Versatile for various applications, from industrial machinery to high-performance computing.
Applications:
Industrial Equipment Cooling: Suitable for maintaining optimal temperatures in industrial machines and equipment.
High-Performance Computing: Ideal for cooling high-end computer systems and servers.
Large Electronics: Effectively cools larger electronic systems where heat dissipation is crucial.
