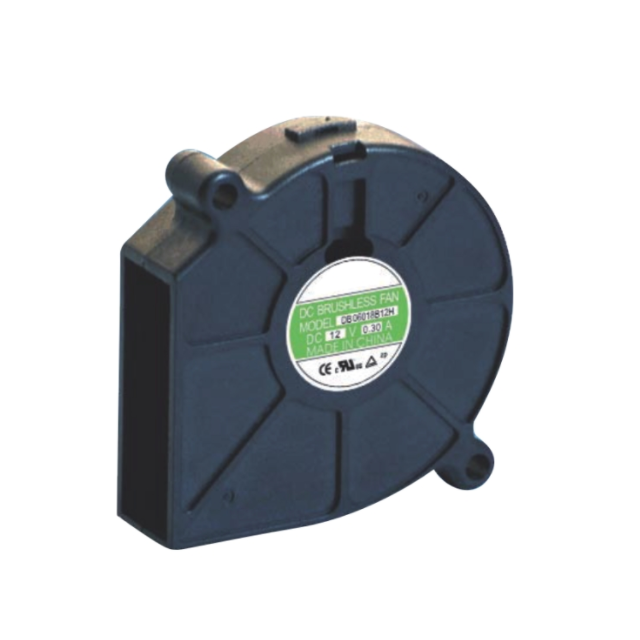

DC6018 Blower
| Mode | #Bearing Type | Rated Voltage | Qperating Voltage | Input Current | Input Power | Speed | MaxAir Flow | Max Static Pressure | Noise | Weigh | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H₂O | Pa | dB-A | g |
| DB06018#05M | B.S | 5 | 3.5-5.5 | 0.36 | 1.80 | 4500 | 5.09 | 0.14 | 0.42 | 104.54 | 39.0 | 41.0 |
| DB06018#05L | B.S | 5 | 3.5-5.5 | 0.24 | 1.20 | 3500 | 4.06 | 0.11 | 0.25 | 62.37 | 34.0 | 41.0 |
| DB06018#12H | B.S | 12 | 7.0-13.8 | 0.30 | 3.60 | 5500 | 5.89 | 0.17 | 0.71 | 176.81 | 43.0 | 41.0 |
| DB06018#12M | B.S | 12 | 7.0-13.8 | 0.20 | 2.40 | 4500 | 5.09 | 0.14 | 0.42 | 104.54 | 39.0 | 41.0 |
| DB06018#12L | B.S | 12 | 7.0-13.8 | 0.15 | 1.80 | 3500 | 4.06 | 0.11 | 0.25 | 62.37 | 34.0 | 41.0 |
| DB06018#24H | B.S | 24 | 14.0-27.6 | 0.20 | 4.80 | 5500 | 5.89 | 0.17 | 0.71 | 176.81 | 43.0 | 41.0 |
| DB06018#24M | B.S | 24 | 14.0-27.6 | 0.12 | 2.88 | 4500 | 5.09 | 0.14 | 0.42 | 104.54 | 39.0 | 41.0 |
| DB06018#24L | B.S | 24 | 14.0-27.6 | 0.08 | 1.92 | 3500 | 4.06 | 0.11 | 0.25 | 62.37 | 34.0 | 41.0 |
Key Features:
High-Power Airflow: Delivers strong and consistent airflow for effective cooling.
Durable Design: Engineered for longevity in industrial and commercial settings.
Versatile Use: Suitable for a variety of cooling and ventilation applications.
Efficient Operation: Optimizes power consumption while delivering superior performance.
Applications:
Industrial Equipment: Ideal for cooling machinery, control panels, and electronic components.
Server Cooling: Suitable for server racks and data center ventilation.
Large-Scale Electronics: Effective in cooling larger electronic devices and systems.
Ventilation Systems: Perfect for integrating into HVAC systems requiring robust airflow.
