AC9238
| Model | Bearing System | Voltage VAC | Rreq. Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow | Phase | Capcitor | |
| M3/hr | CFM | ||||||||||
| HB9238HA1S(B) | 100-125 | 50/60 | 0.23/0.18 | 17/13 | 2350/2750 | 26/31 | 66/78 | 38/46 | 1 | / | |
| HB9238HA2S(B) | 200-240 | 50/60 | 0.10/0.08 | 17/13 | 2600/3000 | 31/35 | 72/85 | 38/46 | 1 | / | |
| HB9238MA1S(B) | 100-125 | 50/60 | 0.12/0.09 | 11/8 | 2200/2500 | 25/27 | 63/70 | 37/41 | 1 | / | |
| HB9238MA2S(B) | 200-240 | 50/60 | 0.07/0.06 | 9/7 | 2250/2600 | 26/28 | 65/75 | 38/44 | 1 | / | |
Key Features:

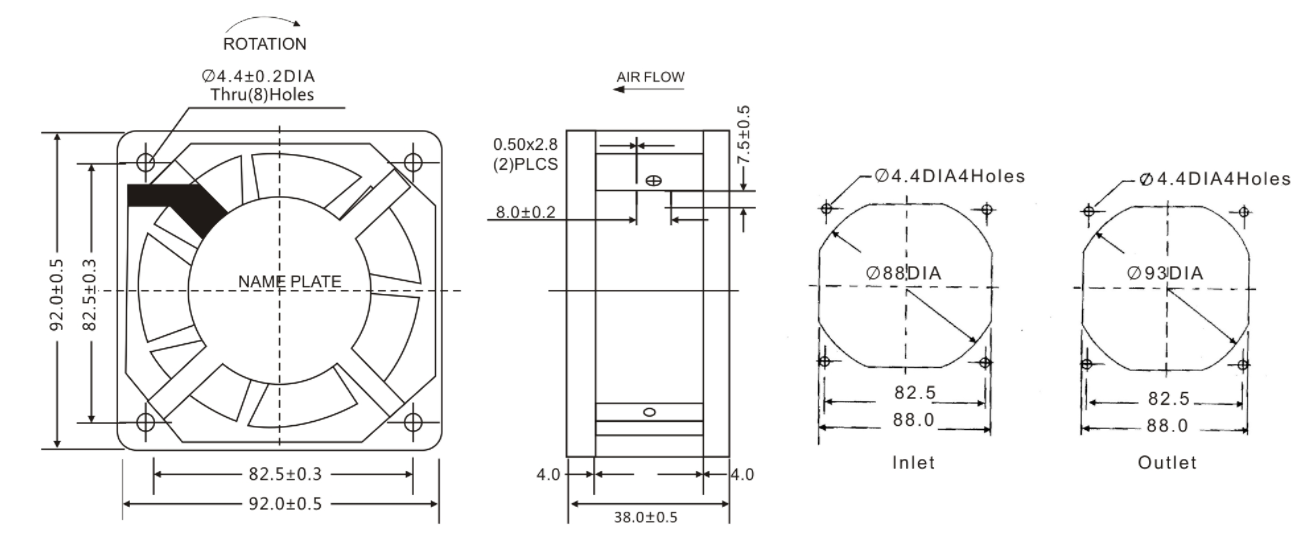

Dimensional Precision for Maximum Efficiency: At 92mm x 92mm x 38mm, this fan is designed for optimal performance in a compact space.
High Airflow with Quiet Operation: Delivers significant cooling power while maintaining low noise levels, ideal for noise-sensitive environments.
Built for the Toughest Conditions: Constructed with durable materials, ensuring reliable performance under challenging industrial conditions.
Energy-Efficient Design: Offers substantial cooling capabilities with minimal power consumption, making it an environmentally friendly choice.
Applications:
Industrial Refrigeration: Excellently suited for cooling systems in industrial settings, maintaining machinery efficiency.
Automotive Systems: Ideal for automotive applications, ensuring consistent cooling under varying operational conditions.
Advanced Electronics: Perfect for cooling high-tech electronic devices, from computers to communication systems.
Power Electronics: Provides stable and efficient cooling, crucial for the longevity and performance of power electronic components.
