Showing Slide 1 of 3: 11025 Dual Voltage AC Fan

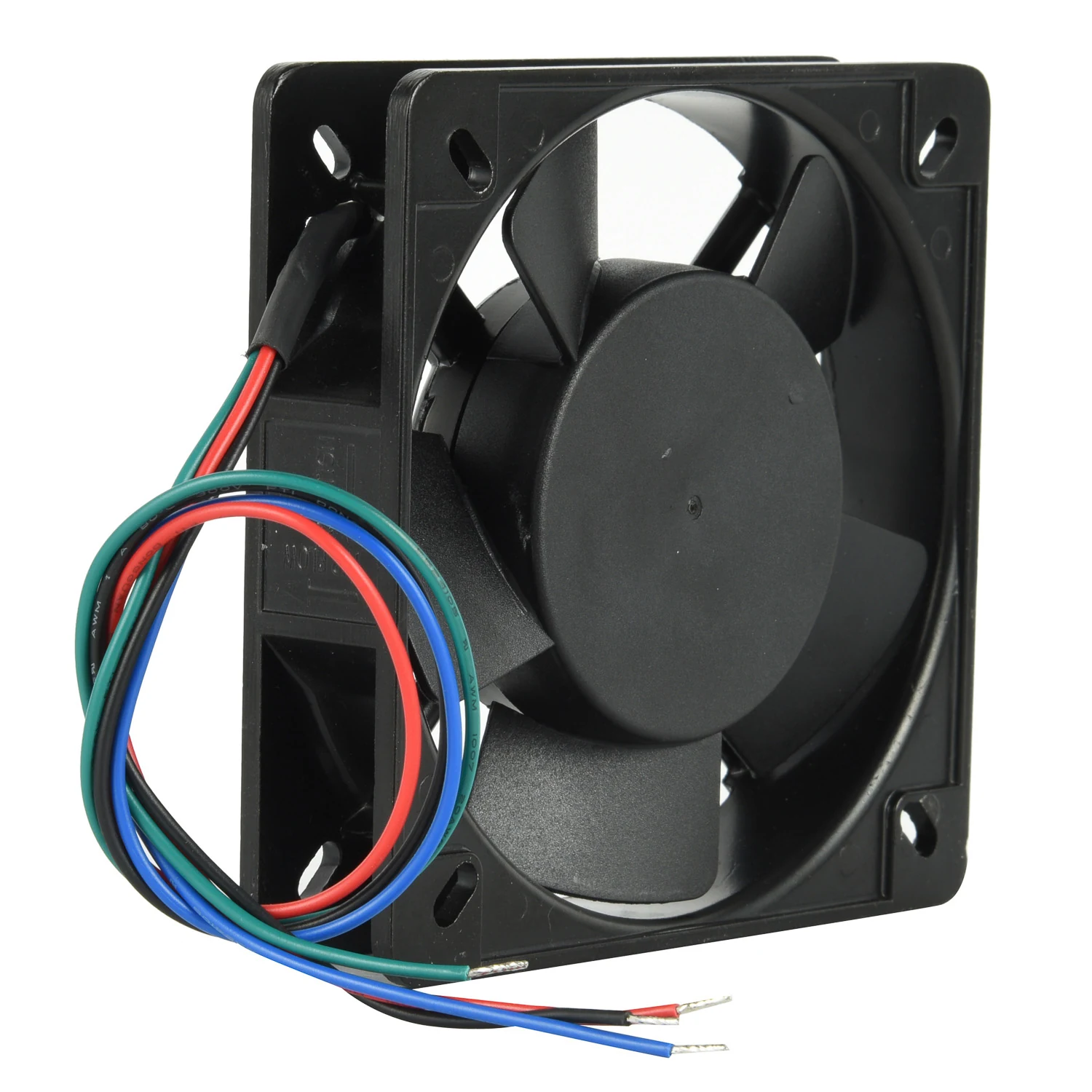

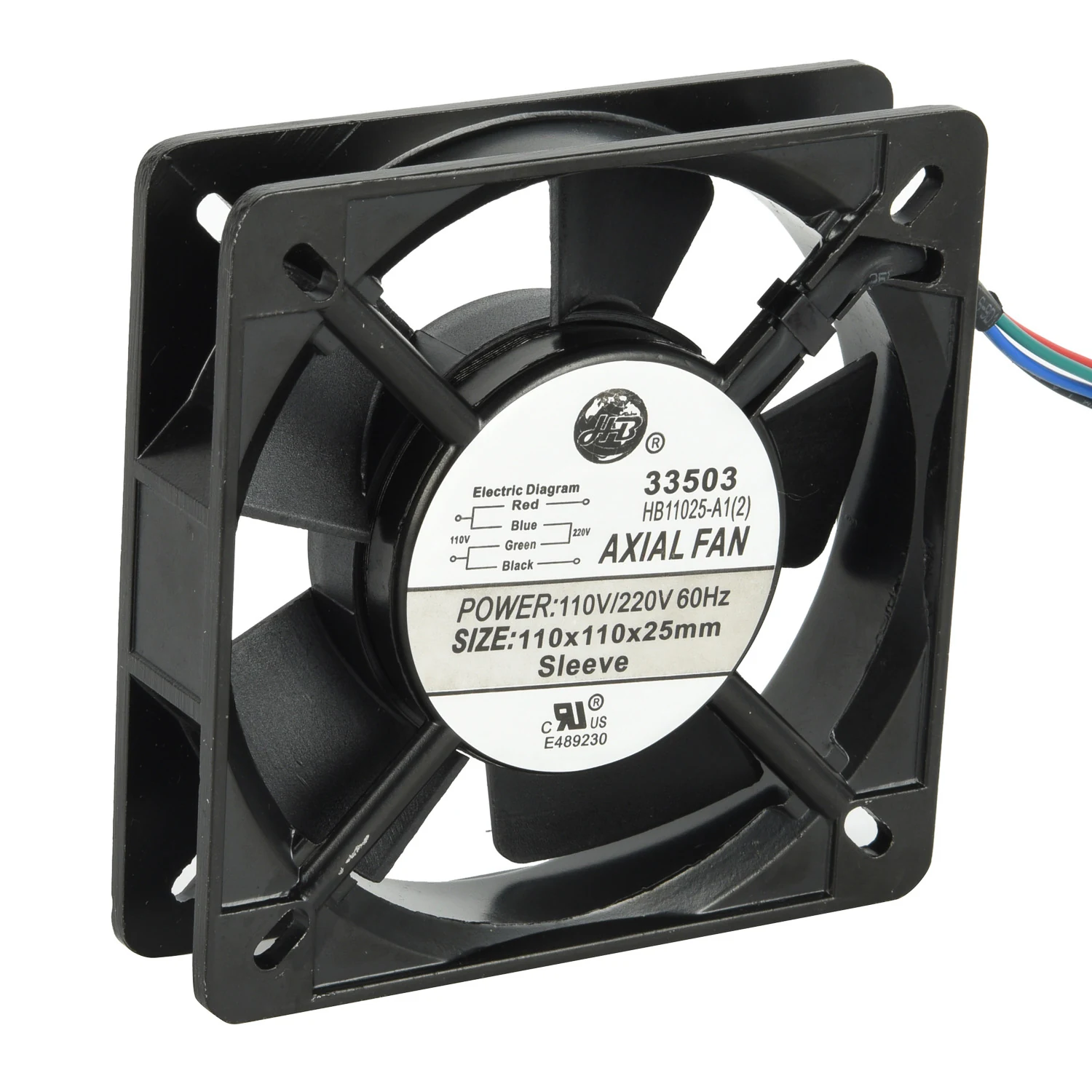

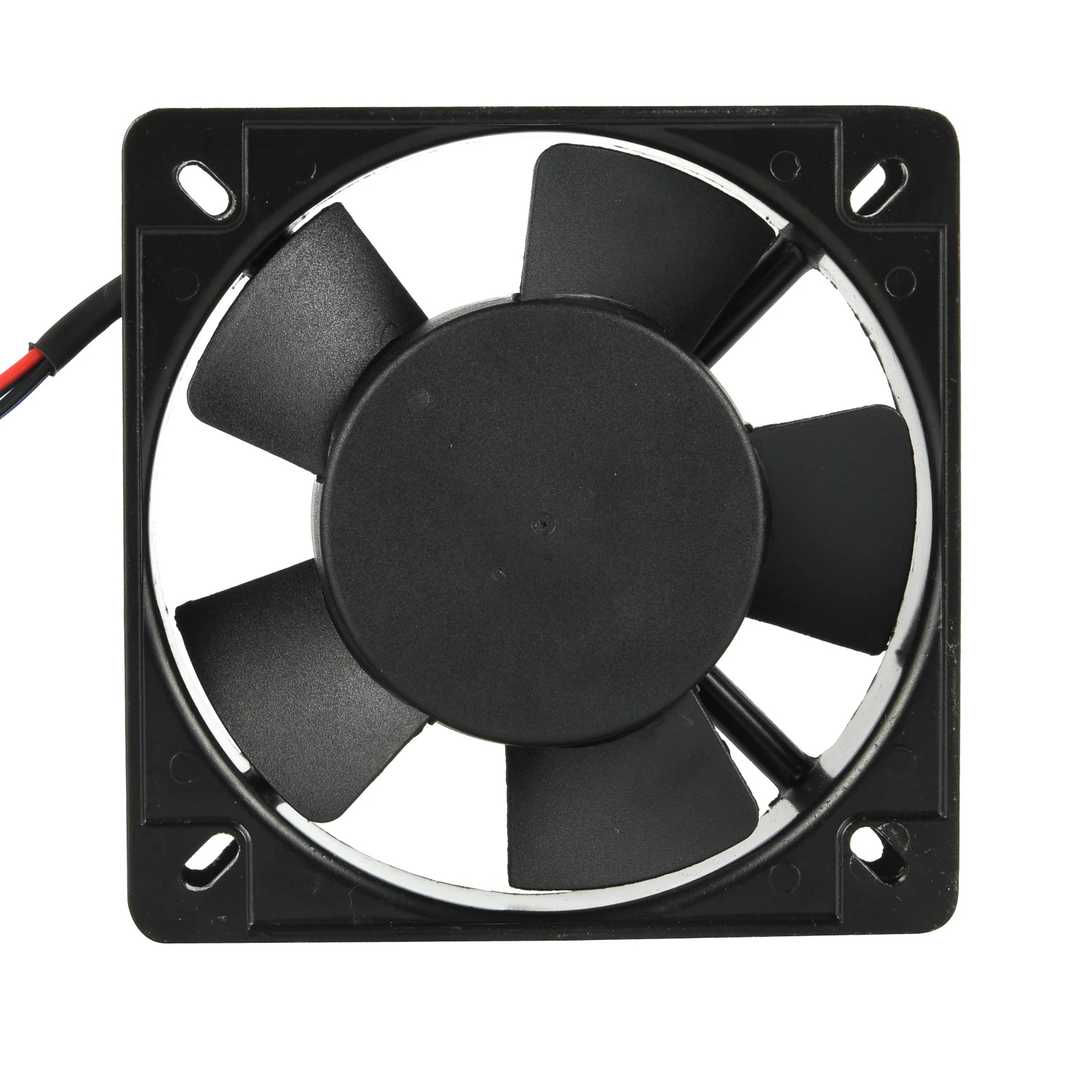

110x110x25mm Dual Voltage AC Axial Fan with 5 Blades | 11025 Dual Voltage AC Fan

Hongbo HB11025 is a 110×110×25 mm Dual Voltage AC axial fan designed for continuous cooling in control cabinets, electrical enclosures, power supplies and industrial equipment. Supporting both 110V and 220V inputs, it features an aluminum alloy frame, PBT impeller and shaded-pole induction motor for reliable long-term operation.

Key Features

Aluminum Alloy Frame: Provides structural rigidity and resistance to deformation under sustained operation in industrial environments.
Optimal Airflow Output: Achieving an air flow of 45-71 CFM, suitable for applications requiring consistent and forceful air movement.
PBT Thermoplastic Impeller: Impeller material is UL94-V0 rated, offering flame resistance and dimensional stability.
Dual Voltage Input: Supports 110V and 220V AC (50/60Hz), compatible with equipment across multiple regions.
Shaded Pole Induction Motor: Features a robust, brushless design with dual primary windings to facilitate field-selectable voltage wiring, significantly reducing maintenance requirements.
Ball and Sleeve Bearing Options: Ball bearing variant extends service life; sleeve bearing option available for cost-sensitive applications.
Wide Operating Temperature: Rated for -10°C to +65°C, suitable for demanding thermal environments.

Products Categories

AC Axial Fan

DC Fan

EC Fan

Centrifugal Fan

Fan Filter

Fan Guard

External Rotor Fan

Feature Products

Dual Voltage Fan

Get A Free Quote

OEM Customization for 11025 Dual Voltage AC Fans

Hongbo Motor supports OEM and ODM orders. Customization options for this 110x110x25mm Dual Voltage AC axial fan include:

Voltage Configuration: Available as a standard 4-wire setup for field-selectable dual voltage, or pre-wired at the factory for specific 110V or 220V applications.
Bearing type: Ball bearing or sleeve bearing
Lead wire: Length, gauge, and connector type adjusted to specification
Speed grade: High, medium, or low speed variants available
Mounting and labeling: Custom packaging, labels, and flange dimensions for OEM requirements

11025 Dual Voltage AC Fan Specifications

Model	Bearing System	Voltage	Frequency	Current @110V / @220V	Power	Speed	Noise	Air Flow	Phase	Lead Wire
HB11025HA-DV-S	Sleeve	110/220 VAC	50/60 Hz	0.25/0.23 / 0.10/0.08 A	22/19 W @110V; 17/13 W @220V	2450/2900 RPM	36/38 dB(A)	60/71 CFM	1	4-Wire
HB11025HA-DV-B	Ball	110/220 VAC	50/60 Hz	0.25/0.23 / 0.10/0.08 A	22/19 W @110V; 17/13 W @220V	2450/2900 RPM	36/38 dB(A)	60/71 CFM	1	4-Wire
HB11025MA-DV-S	Sleeve	110/220 VAC	50/60 Hz	0.16/0.15 / 0.07/0.07 A	16/15 W	2000/2000 RPM	33/33 dB(A)	52/52 CFM	1	4-Wire
HB11025MA-DV-B	Ball	110/220 VAC	50/60 Hz	0.16/0.15 / 0.08/0.08 A	16/15 W @110V; 19/18 W @220V	2000/2000 RPM	33/33 dB(A)	52/52 CFM @110V; 60/71 CFM @220V*	1	4-Wire
HB11025LA-DV-S	Sleeve	110/220 VAC	50/60 Hz	0.13/0.11 / 0.05/0.05 A	14/13 W	1800/1700 RPM	28/27 dB(A)	46/45 CFM	1	4-Wire
HB11025LA-DV-B	Ball	110/220 VAC	50/60 Hz	0.13/0.11 / 0.05/0.05 A	14/13 W	1800/1700 RPM	28/27 dB(A)	46/45 CFM	1	4-Wire

Applications

This 110mm dual voltage axial fan 11025 is widely used in:

Electrical Control Cabinets: Maintains safe operating temperatures for switchgear, PLCs, and control components, making it ideal for globally exported machinery supporting both 110V and 220V grids.
Industrial Enclosures: Provides continuous ventilation in sealed or partially sealed housings on factory floors.
Power Supply & Conversion Equipment: Supports thermal management in industrial UPS systems, inverters, and power transformers.
Commercial Equipment & Vending: Used in ATMs, ticketing machines, and vending enclosures where direct AC mains power is utilized.
Refrigeration and HVAC Systems: Assists in condenser and evaporator airflow within commercial refrigeration units, display cases, and wine coolers.
Automation Control Panels: Keeps entire automation and motor control centers (MCC) properly ventilated to protect internal servo drives and logic controllers from overheating.

Why Choose Hongbo Motor

10+ years of experience

Exported to 40+ countries

Stable production

OEM/ODM support

UL certified

Reliable quality

Get Quote Now

FAQs

What is the primary application of the Dual Voltage AC 11025 fan?

This fan is used for cooling in industrial control cabinets, electrical enclosures, power supply systems, and ventilation equipment requiring an 110mm footprint with consistent airflow.

How does the dual voltage feature work?

As a dual voltage fan, a single unit is designed to operate on both 110V and 220V AC. The desired operating voltage is easily selected through the wiring configuration during installation.

What is the difference between the ball bearing and sleeve bearing options?

Ball bearing models offer a longer rated service life and better performance in high-temperature environments. Sleeve bearing models are a cost-effective option for standard-duty applications.

Do you support OEM orders?

Yes. We support customization of wiring configurations (e.g., pre-wiring for 110V or 220V), bearing type, lead wire, speed, and packaging. Please contact our sales team with your specifications and volume requirements.

What is the minimum order quantity?

MOQ varies by model and configuration. Contact us directly for details based on your requirements.
