Control Cabinet Cooling Fans for Electrical Enclosures

Select an axial fan or a filtered air inlet for an electrical cabinet. Start with equipment heat loss, maximum ambient temperature, available supply and the actual inlet-to-outlet path. Use the choices below to shortlist published models and prepare a request with the right operating conditions.

Enclosure Fan
Products Categories
Get A Free Quote
Contact Form

Application Challenge

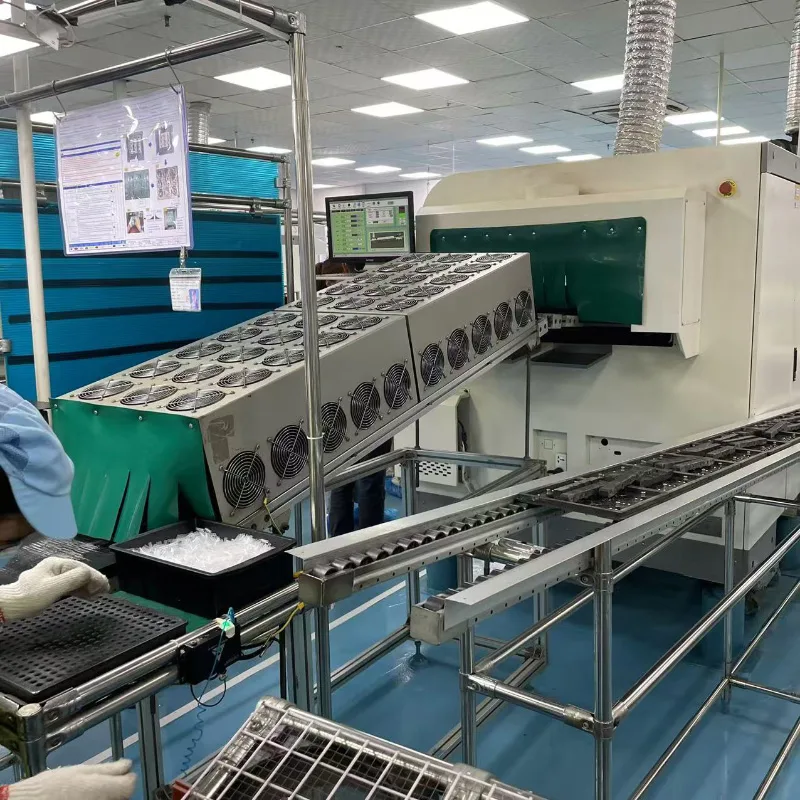

Automation

Challenge 1: Excessive Heat Build-Up

Control cabinets often contain high-density electrical components that generate significant heat during operation. Without proper airflow, internal temperatures can quickly exceed recommended limits, leading to component failure, reduced efficiency, and unexpected downtime.

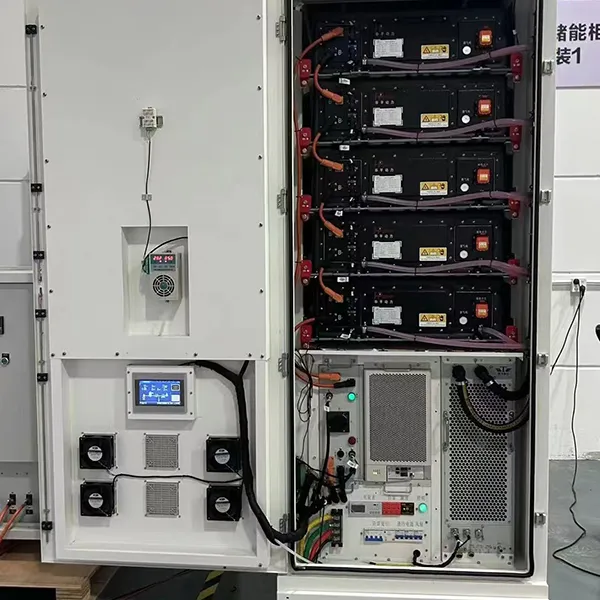

Power & Energy Storage

Challenge 2: Dust and Contaminant Ingress

Opening cabinet doors or using improper ventilation methods can allow dust, moisture, and airborne contaminants to enter the enclosure. This can damage sensitive electronics and shorten equipment lifespan.

How Cooling Fans and Fan Filters Help

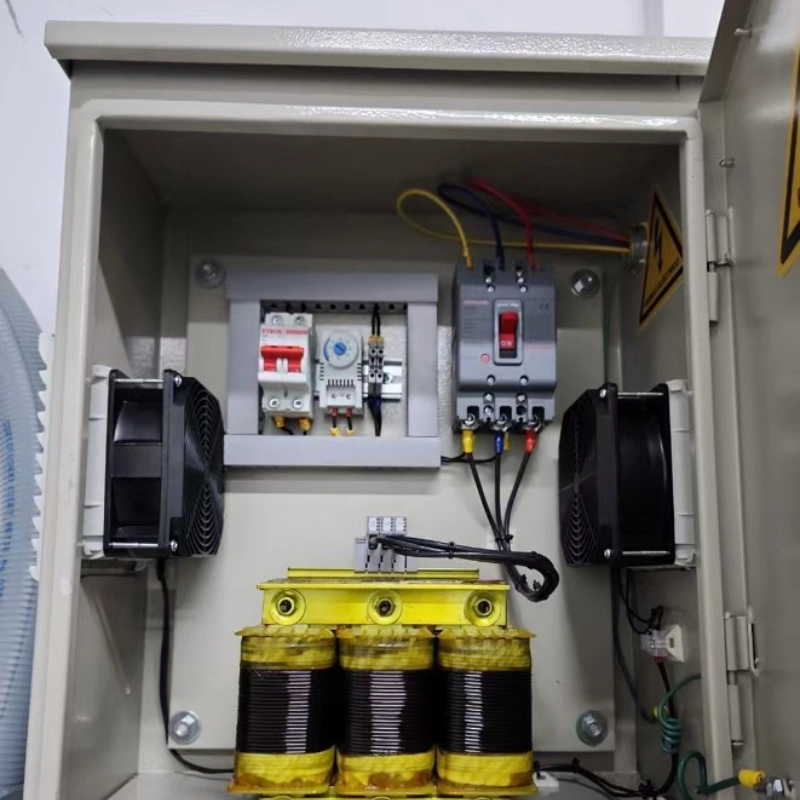

Electrical Cabinet

Remove Hot Air

A cabinet cooling fan helps move hot air out of the enclosure and creates steady airflow around heat-generating components.

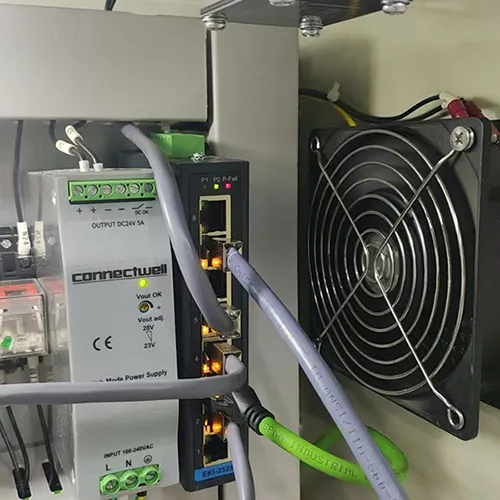

Cabinet

Improve Equipment Reliability

Better airflow helps reduce heat stress, lower the risk of unexpected alarms and support more stable operation in industrial systems.

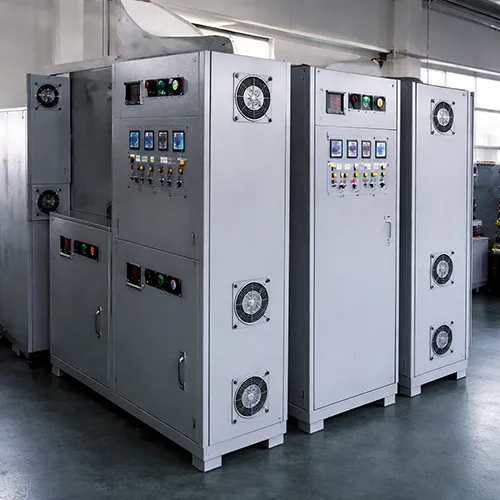

cabinet2

Bring in Cleaner Air

Fan filters allow air to enter the cabinet while helping reduce dust and particles from reaching sensitive electrical parts.

How to select a fan for your control cabinet

Confirm that outside air can carry the heat away

List the watts dissipated by the drives, power supplies and other components at design load. Subtract the highest expected inlet temperature from the maximum permitted internal temperature. If that difference is small, the airflow needed rises quickly. If the inlet is as hot as the limit or the cabinet must stay sealed, assess a closed-loop cooling method. Estimate the cabinet airflow

Match the supply and the mounting space

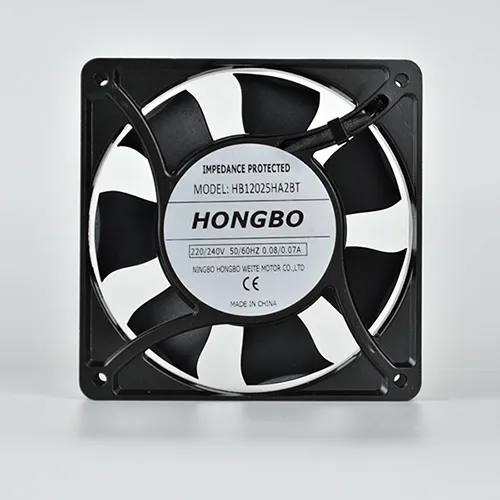

For a mains-powered panel with a 120 mm fan position and limited depth, compare the exact voltage and frequency variants of the 12025 AC axial fan. For a compact low-voltage equipment bay, compare the supply and connector of the 8025 DC axial fan with the available supply. Use the drawing for hole centres, installed depth, cable clearance and airflow direction.

Check both the inlet and outlet in a dusty enclosure

Review HB-804 (nominal 120 mm) and HB-805 (nominal 172 mm) as filter housing candidates. Verify the actual panel cut-out, mounting details, inlet and outlet media, and the needed protection of the assembled cabinet. Compare available fan pressure with losses through the complete path at the target airflow. A nominal size alone cannot establish fit or airflow.

Verify the fan in the closed cabinet

Use the intended filter and outlet arrangement with the door shut. At design load, record inlet ambient temperature, the highest relevant component temperature, and airflow or pressure using a repeatable method. Keep the approved fan suffix, drawing revision, supply and filter details with the test result. View the 12025 catalogue sheet ยท Request model-specific drawings or curves

Follow a worked cabinet fan selection

Fan and filter candidates for cabinet projects

[app_related_products]
Send your cabinet requirements

Include the heat loss, inlet ambient temperature, permitted internal temperature, cut-out and depth, fan supply and quantity. Add airflow and pressure if already known, and identify the proposed inlet and outlet filters.

Open the control cabinet enquiry
