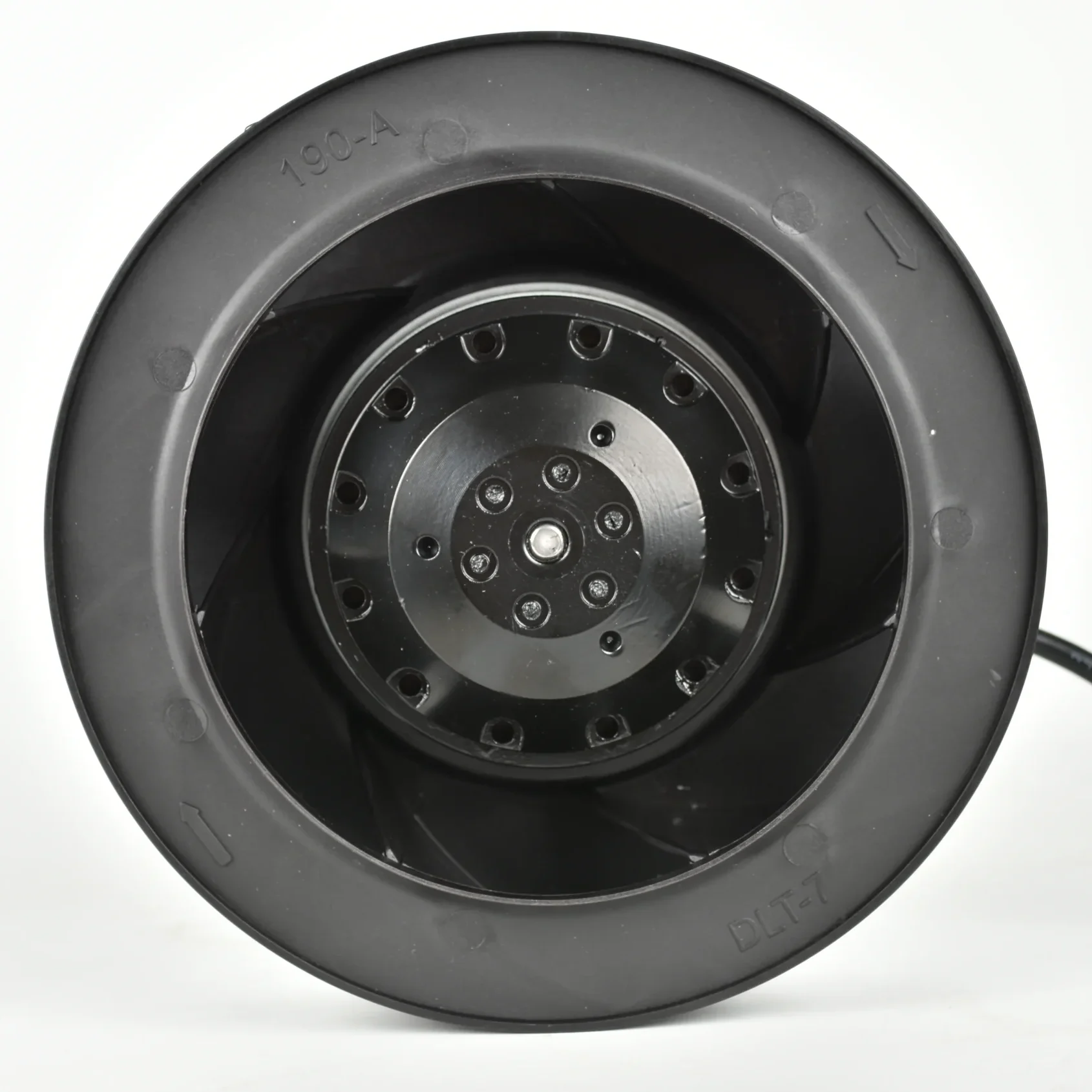

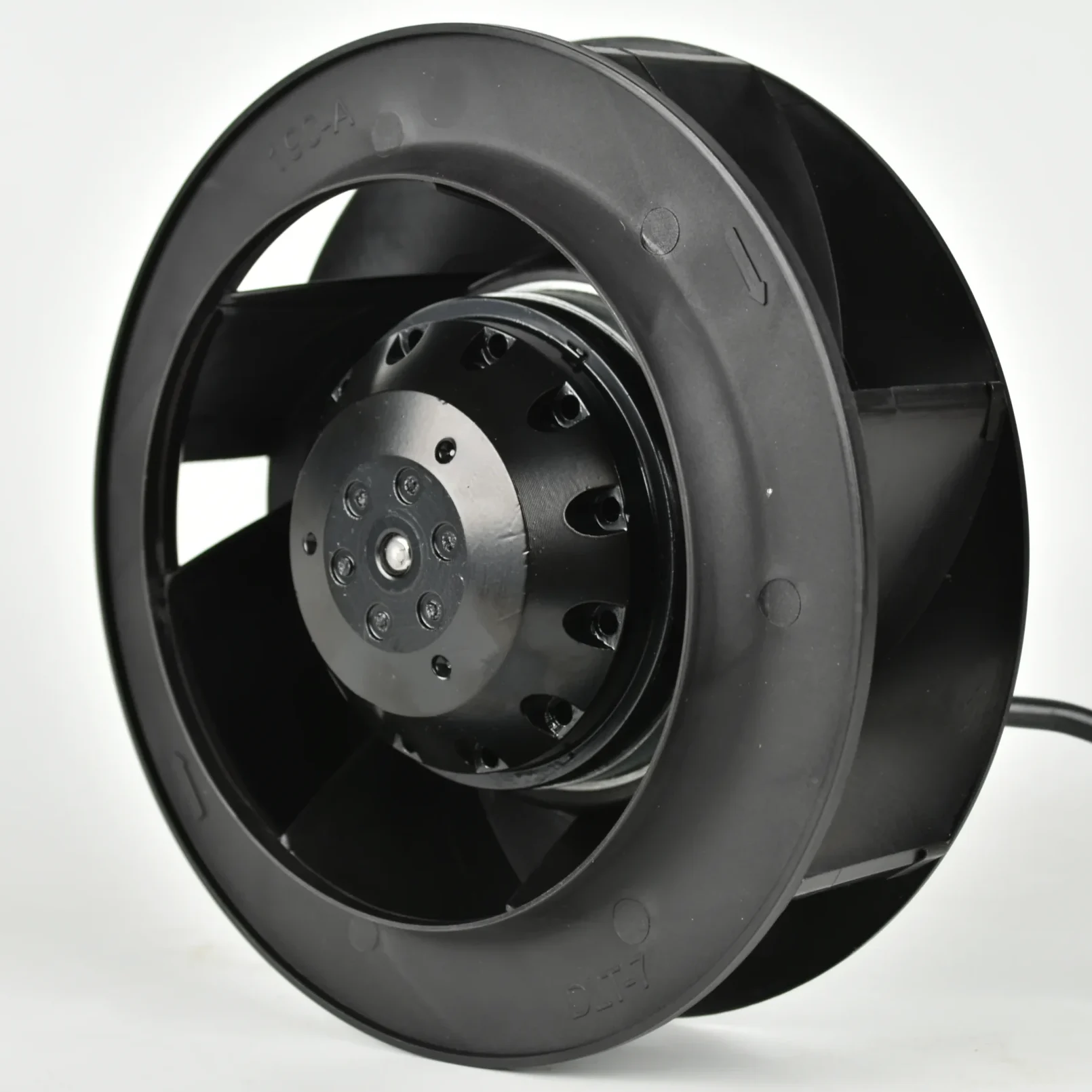

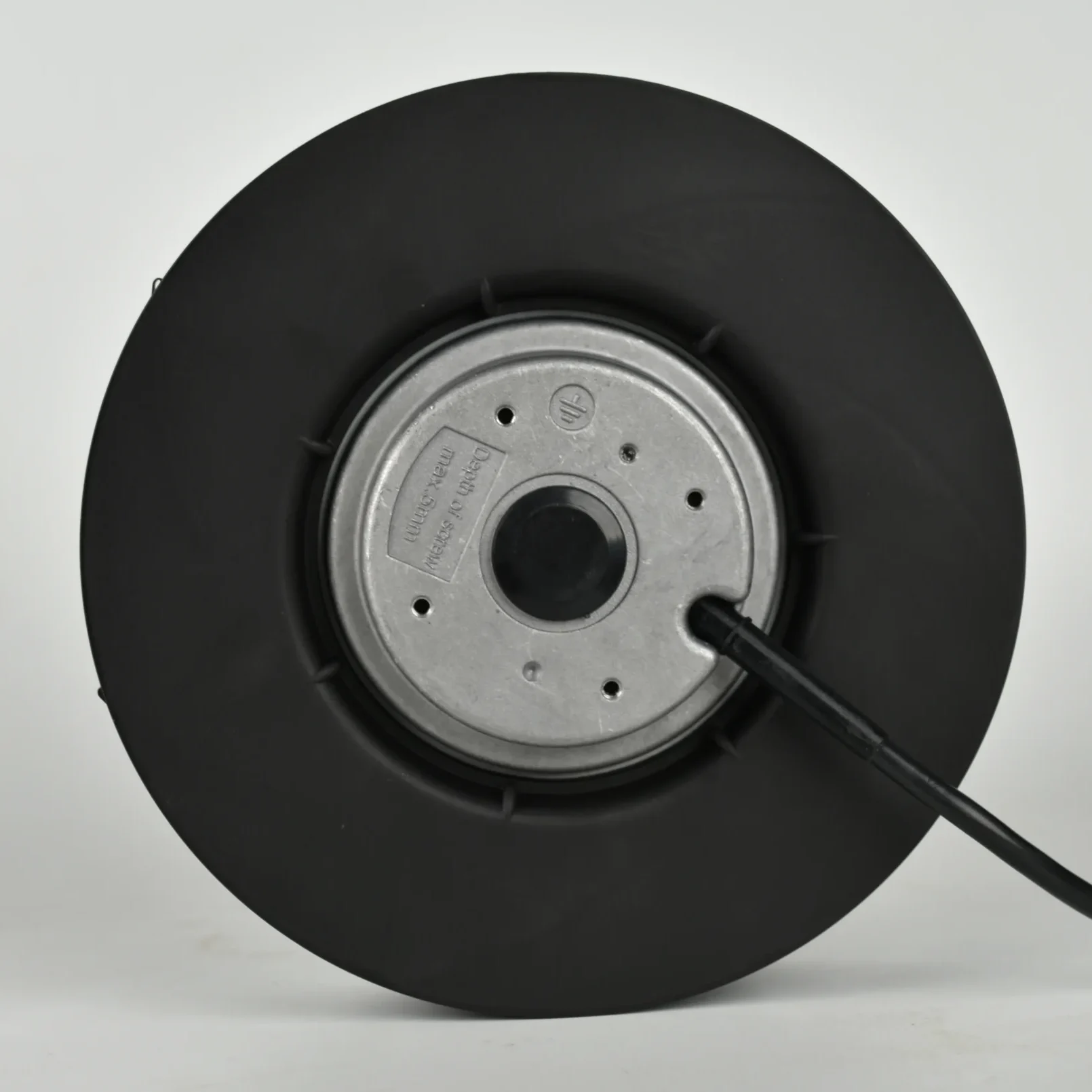

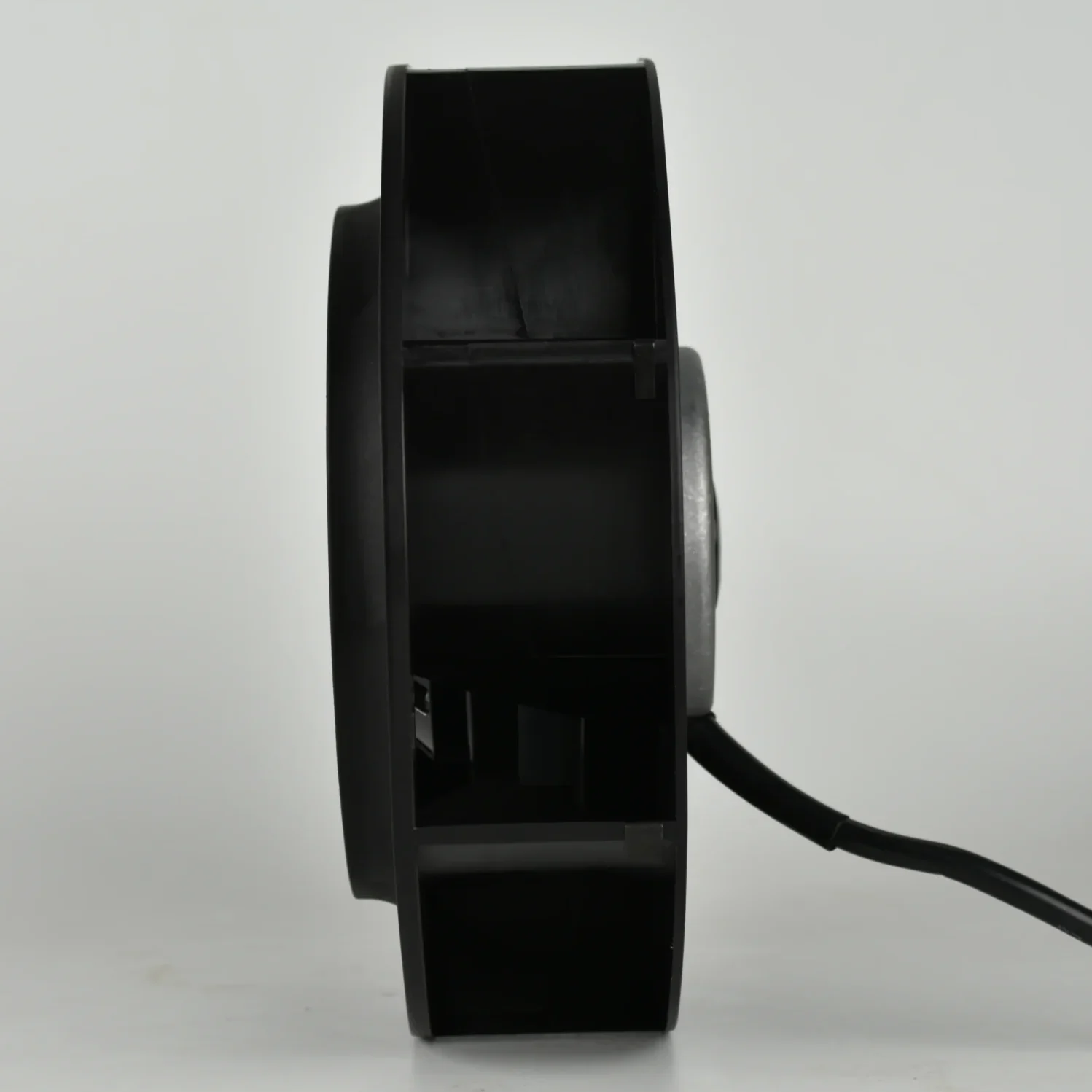

Showing Slide 1 of 4: 190FLW 190mm AC centrifugal fan
190FLW AC Centrifugal Blower Fan | Industrial Centrifugal Fan 190mm
The Hongbo 190FLW is a compact backward-curved AC centrifugal fan designed for HVAC, industrial ventilation and equipment cooling. It delivers airflow up to 580 mยณ/h and static pressure up to 335 Pa, with 220V and 380V configurations available.
Key Features
- Centrifugal Airflow Design:ย Moves air at 90ยฐ to the inlet axis, producing higher static pressure than axial fans; suited for ducted systems and applications with airflow resistance.
- Plastic PA6+25%GF Impeller:ย High-strength polyamide impeller provides good chemical resistance and dimensional stability under sustained operation.
- IP44 Protection Rating:ย Protected against solid objects greater than 1mm and water splashing from any direction; suitable for semi-exposed industrial environments.
- Insulation Class F:ย Motor windings rated for continuous operation at elevated winding temperatures, supporting long-duty-cycle industrial applications.
- Certification: CE and CQC certified configurations available. Manufactured under an ISO 9001 quality management system.
- AC Power Operation: Operates on standard AC voltage; available in 220V and 380V AC configurations..
- Compact Blower Format:ย Self-contained blower unit suitable for integration into equipment housings, duct connectors, and ventilation assemblies.
Products Categories
Get A Free Quote
Customization Options
Hongbo Motor supports OEM and ODM orders for this 190FLW AC centrifugal blower fan:
- Voltage:ย Multiple AC voltage options available; contact us for details
- Blade curve type: Backward curved blade configuration
- Airflow direction:ย Clockwise or counterclockwise rotation available
- Lead wire:ย Length and connector type to specification
- Mounting:ย Outlet duct dimensions and flange configurations adaptable for OEM integration
- Packaging and labeling:ย Custom branding for volume OEM programs
Specifications
| Product Model |
Ingress Protection |
Insulation Rating |
Voltage (V) |
Frequency (Hz) |
Capacitance (ฮผF) |
Performance | Air mยณ/h |
Static Pressure (Pa) |
Noises (dB(A)) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Current (A) |
Power (W) |
Rotate Speed (r/min) |
|||||||||
| 190FLW2 | IP44 | F | 220 | 50/60 | 2.2 | 0.33 | 72 | 2500 | 580 | 335 | 68 |
| 190FLW3 | IP44 | F | 380 | 50/60 | – | 0.17 | 64 | 2500 | 580 | 335 | 68 |
Applications
This centrifugal blower fan 190FLW is widely used in:
- HVAC & air handling equipment: Provides directed supply or exhaust airflow in duct sections and air recirculation assemblies in commercial and industrial buildings.
- Industrial ventilation: Delivers precise, controllable airflow in clean room equipment and diagnostic instrument housings, and provides fume extraction for laser and cutting equipment.
- Refrigeration equipment: Drives airflow across evaporator or condenser coils in commercial refrigeration units.
- Electrical equipment cooling: Channels cooling air through transformers and power electronics enclosures, and supplies pressurized air to electrical cabinets to prevent dust or fume ingress.
- Heat exchangers: Drives airflow across evaporator or condenser coils within heat exchanger systems.
- Machinery cooling: Channels cooling air through targeted pathways inside industrial machinery, and provides focused air jets for cooling in laser and cutting equipment.
Why Choose Hongbo Motor
- Over 10 years of focused experience in industrial cooling fan manufacturing
- Products exported to 40+ countries across North America, South America, Europe, and Asia
- Stable production capacity with consistent lead times
- Strong OEM/ODM capability for volume and custom orders
- Reliable quality backed by international certifications
FAQs
When should I use a centrifugal fan instead of an axial fan?
What is the minimum order quantity?
What does the IP44 rating mean for this fan?
IP44 means the fan is protected against solid particles larger than 1mm and against water splashing from any direction. It is suitable for use in industrial environments where light moisture or dust exposure is possible.
What voltage options are available?
Available AC voltage configurations vary by model. Please contact our sales team with your power supply specification for the appropriate model recommendation.
Do you support OEM orders?
Yes. We support customization of voltage, blade type, rotation direction, lead wire, and packaging. Contact our sales team with your requirements.
What is the minimum order quantity?
MOQ varies by model and configuration. Please contact us directly for details.
Certifications and Quality Assurance
- CE Certification
- CQC Certification (China Quality Certification)
- RoHS Compliance
Manufactured and tested at Hongbo Motorโs 6,000 mยฒ facility in Ningbo, China.
