Reliable 120x120x38mm AC Axial Fan with 5 Blades | 12038-5P AC Fan

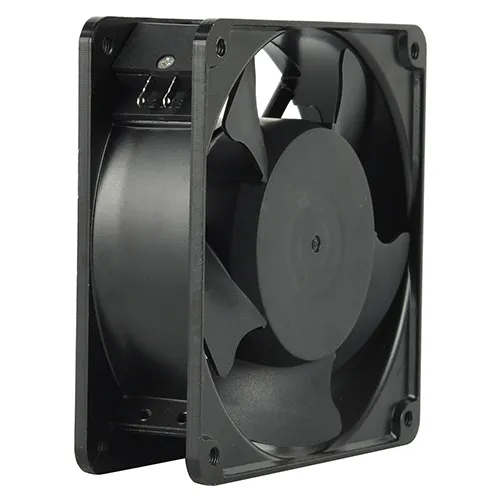

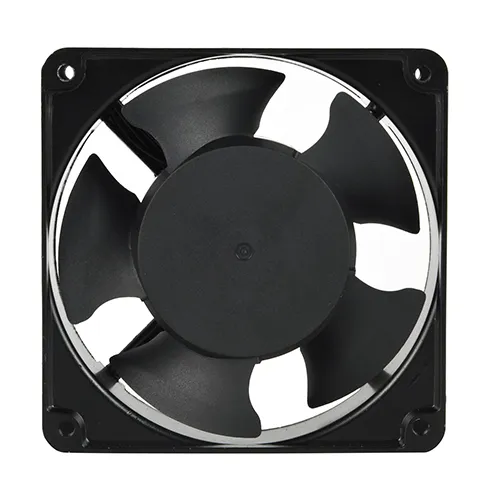

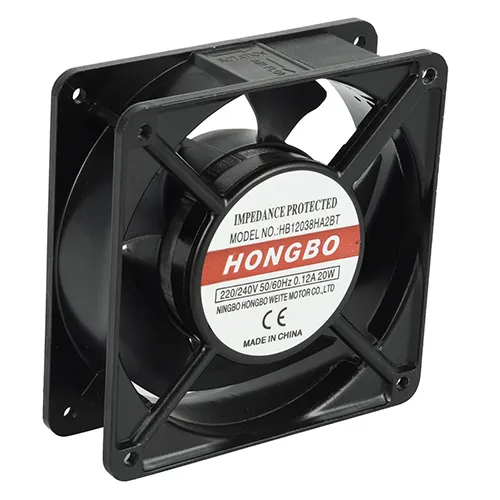

Hongbo 12038 is a 120ร120ร38mm AC axial fan designed for high-volume airflow in industrial and commercial cooling applications. Delivering 122โ162 mยณ/hr (76โ98 CFM), this 120mm axial fan 12038 is built for continuous operation in control cabinets, electrical enclosures, and ventilation systems. It features an aluminum alloy frame and a shaded pole induction motor for reliable, long-term performance.
Key Features
- Aluminum Alloy Frame:ย Provides structural rigidity and resistance to deformation under sustained operation in industrial environments.
- High Airflow Output: Delivers 122โ162 mยณ/hr (76โ98 CFM), suitable for applications requiring consistent and forceful air movement.
- PBT Thermoplastic Impeller:ย Impeller material is UL94-V0 rated, offering flame resistance and dimensional stability.
- Dual Voltage Availability:ย Supports 110V and 220V AC (50/60Hz), compatible with equipment across multiple regions.
- Shaded Pole Induction Motor:ย Simple motor design with no brushes or commutators, reducing maintenance requirements.
- Ball and Sleeve Bearing Options:ย Ball bearing variant extends service life; sleeve bearing option available for cost-sensitive applications.
- Wide Operating Temperature:ย Rated for -10ยฐC to +65ยฐC, suitable for demanding thermal environments.
OEM Customization for 12038 AC Fans
Hongbo Motor supports OEM and ODM orders. Customization options for this 120x120x38mm AC axial fan include:
- Voltage:ย 110V, 220V, 380V, or dual-voltage configurations
- Bearing type:ย Ball bearing or sleeve bearing
- Lead wire:ย Length, gauge, and connector type adjusted to specification
- Speed grade:ย High, medium, or low speed variants available
- Mounting and labeling:ย Custom packaging, labels, and flange dimensions for OEM requirements
Contact us with your technical requirements for a tailored solution.
Specifications
| Model | Bearing System | Voltage | Frequency | Current | Power | Speed | Noise | Air Flow | Phase | Capacitor |
|---|---|---|---|---|---|---|---|---|---|---|
| VAC | Hz | A | W | RPM | dB(A) | CFM | ฮผF/VAC | |||
| HB12038HA1S | Sleeve | 100/125 | 50/60 | 0.4/0.33 | 23/30 | 2600/3000 | 43/48 | 93/98 | 1 | / |
| HB12038HA2S | 200/240 | 50/60 | 0.15/0.12 | 21/18 | 2600/3000 | 43/48 | 93/98 | 1 | / | |
| HB12038HA3B | 380/420 | 50/60 | 0.1 | 21 | 2600/3000 | 43/48 | 93/98 | 1 | / | |
| HB12038HA1B | Ball | 100/125 | 50/60 | 0.4/0.33 | 23/30 | 2600/3000 | 43/48 | 93/98 | 1 | / |
| HB12038HA2S | 200/240 | 50/60 | 0.15/0.12 | 21/18 | 2600/3000 | 43/48 | 93/98 | 1 | / | |
| HB12038HA3S | 380/420 | 50/60 | 0.1 | 21 | 2600/3000 | 43/48 | 93/98 | 1 | / | |
| HB12038MA1S | Sleeve | 100/125 | 50/60 | 0.24 | 18 | 2200/2600 | 39/44 | 76/94 | 1 | / |
| HB12038MA2S | 200/240 | 50/60 | 0.11 | 19 | 2200/2600 | 39/44 | 76/94 | 1 | / | |
| HB12038MA1B | Ball | 100/125 | 50/60 | 0.22 | 19 | 2200/2600 | 39/44 | 76/94 | 1 | / |
| HB12038MA2B | 200/240 | 50/60 | 0.11 | 19 | 2200/2600 | 39/44 | 76/94 | 1 | / |
Applications
This 120mm axial fan 12038 is widely used in:
- Electrical control cabinets:ย Maintains safe operating temperatures for switchgear, PLCs, and control components.
- Industrial enclosures:ย Provides continuous ventilation in sealed or partially sealed housings.
- Power supply cooling:ย Supports thermal management in UPS systems and power conversion equipment.
- Telecommunications equipment:ย Used in base stations and network racks where compact, reliable fans are required.
- Refrigeration and HVAC systems:ย Assists in condenser and evaporator airflow within commercial refrigeration units.
- Automation and robotics systems:ย Keeps servo drives and motion control hardware within operating temperature limits.
Why Choose Hongbo Motor
10+ years of experience
Exported to 40+ countries
Stable production
OEM/ODM support
UL certified
Reliable quality
FAQs
Certifications and Quality Assurance
All Hongbo Motor products are manufactured in compliance with international quality and safety standards:
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certificationย (China Compulsory Certification)
Production follows strict in-process and outgoing quality controls at our 6,000 mยฒ facility in Ningbo, China.
More Details
Size:120mmx120mmx38mm
Airflow:122~162m3/hrย 72-95CFM
Weight:480g
Noise:39~48dBA
Impeller:PBT Thermoplastic Black,UL94-V0
Frame:Aluminum Alloy
Terminals:0.5mm
Lead Wire:A WG#22 UL 1007(Optional)
Motor:Shaded Pole Induction Motor
Operation Temperature:- 10C~+65โ
Model Parameter
| Parameter | Value |
|---|---|
| Size | 120 ร 120 ร 38 mm |
| Voltage | 110V / 220V AC (50/60Hz) |
| Airflow | 122โ162 mยณ/hr (72โ95 CFM) |
| Noise Level | 39โ48 dBA |
| Weight | 480 g |
| Frame Material | Aluminum alloy |
| Impeller Material | PBT thermoplastic, UL94-V0 |
| Motor Type | Shaded pole induction motor |
| Bearing Type | Ball bearing / Sleeve bearing |
| Terminal | 0.5 mm |
| Lead Wire | AWG#22 UL 1007 (optional) |
| Operating Temperature | -10ยฐC to +65ยฐC |
