Φ220x60mm AC Axial Fan with 5 Blades | 22060 High-Performance AC Fan

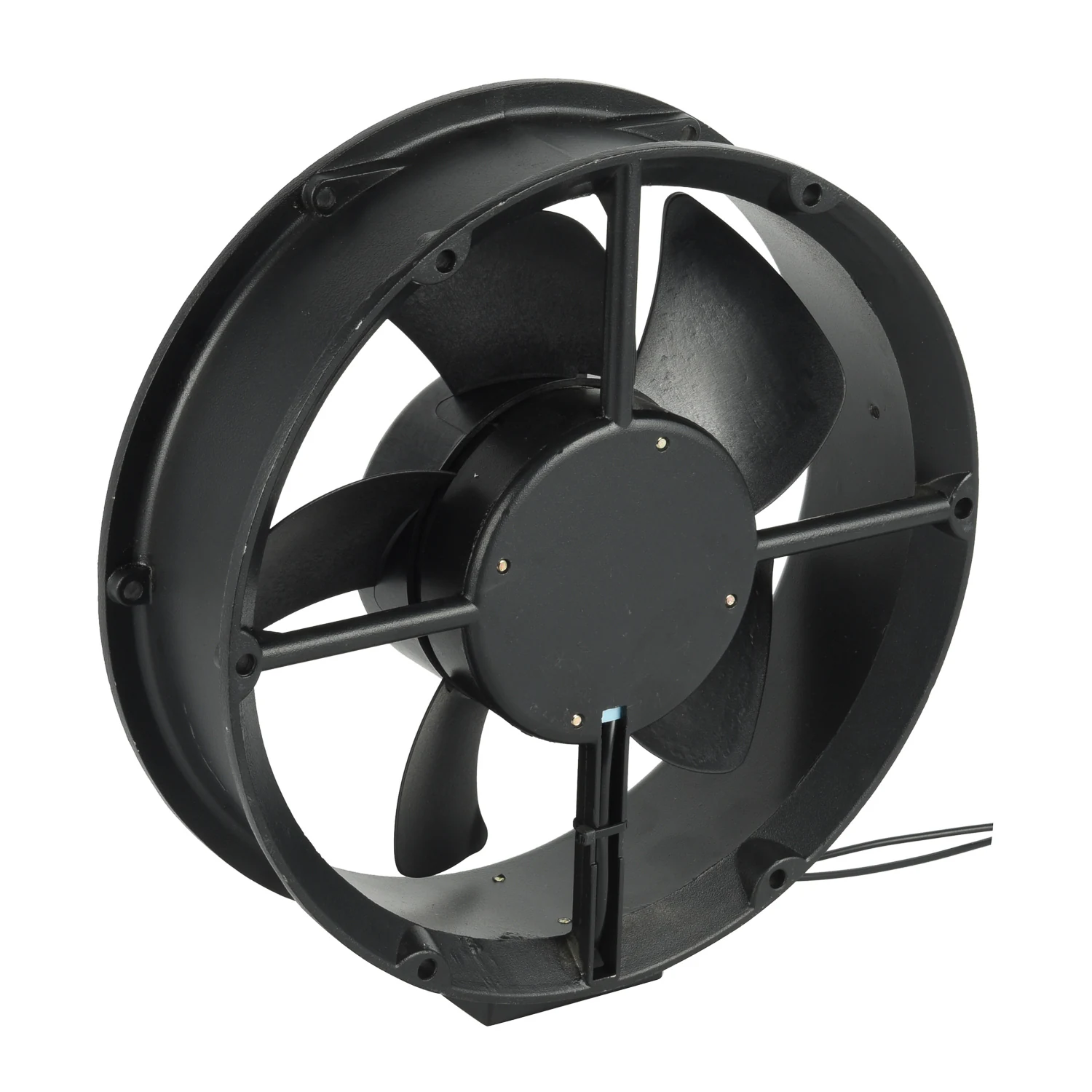

Hongbo HB22060 with 5 Blades is a Φ220×60 mm AC axial fan designed for continuous cooling in control cabinets, electrical enclosures, power supplies and industrial equipment. Available in 200V and 240V configurations, it features an aluminum alloy frame, PBT UL94-V0 impeller and capacitor-run induction motor for reliable long-term operation.
Key Features
- Aluminum Alloy Frame: Provides structural rigidity and resistance to deformation under sustained operation in industrial environments.
- High Airflow Output: Achieving a air flow of 357-386 CFM, suitable for applications requiring consistent and forceful air movement.
- PBT UL94-V0 Impeller: Impeller material is PBT UL94-V0, offering flame resistance and dimensional stability.
- Dual Voltage Availability: Supports 200V and 240V AC (50/60Hz), compatible with equipment across multiple regions.
- Capacitor-Run Induction Motor: Simple motor design with no brushes or commutators, reducing maintenance requirements.
- Ball Bearing Option: Ball bearing variant extends service life.
- Wide Operating Temperature: Rated for -10°C to +65°C, suitable for demanding thermal environments.
OEM Customization for 22060 with 5 Blades AC Fans
Hongbo Motor supports OEM and ODM orders. Customization options for this Φ220x60mm AC axial fan include:
- Voltage: 200V, 240V or dual-voltage configurations
- Bearing type: Ball bearing
- Lead wire: Length, gauge, and connector type adjusted to specification
- Speed grade: High, medium, or low speed variants available
- Mounting and labeling: Custom packaging, labels, and flange dimensions for OEM requirements
Contact us with your technical requirements for a tailored solution.
22060 with 5 Blades AC Fan Specifications
| Model | Bearing System | Voltage | Frequency | Current | Power | Speed | Noise | Air Flow | Phase | Capacitor |
|---|---|---|---|---|---|---|---|---|---|---|
| VAC | Hz | A | W | RPM | dB(A) | CFM | μF/VAC | |||
| HB22060HA2BL | Ball | 200/240 | 50/60 | 0.4/0.37 | 56/53 | 2800/3150 | 63/67 | 357/386 | 1 | / |
Applications
This 220mm axial fan 22060 with 5 Blades is widely used in:
- Electrical control cabinets: Maintains safe operating temperatures for switchgear, PLCs, and control components.
- Industrial enclosures: Provides continuous ventilation in sealed or partially sealed housings.
- Power supply cooling: Supports thermal management in UPS systems and power conversion equipment.
- Telecommunications equipment: Used in base stations and network racks where compact, reliable fans are required.
- Refrigeration and HVAC systems: Assists in condenser and evaporator airflow within commercial refrigeration units.
- Automation and robotics systems: Keeps servo drives and motion control hardware within operating temperature limits.
Why Choose Hongbo Motor
10+ years of experience
Exported to 40+ countries
Stable production
OEM/ODM support
UL certified
Reliable quality
FAQs
Certifications and Quality Assurance
All Hongbo Motor products are manufactured in compliance with international quality and safety standards:
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certification (China Compulsory Certification)
Production follows strict in-process and outgoing quality controls at our 6,000 m² facility in Ningbo, China.
More Details
Size:Φ220mmx60mm
Airflow:357-386CFM
Weight:1600g
Noise:63~67dBA
Impeller:PBT UL94-V0
Frame:Aluminum Alloy
Terminals:Teminal Block
Lead Wire:AWG#22 UL 1332(Optional)
Motor:Shaded Pole Induction Motor
Operation Temperature:- 10C~+65℃
Model Parameter
| Parameter | Value |
|---|---|
| Size | Φ220 x 60 mm |
| Voltage | 200V / 240V |
| Frequency | 50/60 Hz |
| Airflow | 357–386 CFM |
| Noise Level | 63–67 dBA |
| Weight | 1600 g |
| Frame Material | Aluminum alloy |
| Impeller Material | PBT UL94-V0 |
| Motor Type | Shaded Pole Induction Motor |
| Bearing Type | Ball bearing |
| Terminal | Teminal Block |
| Lead Wire | AWG#22 UL 1332(Optional) |
| Operating Temperature | -10°C to +65°C |
