Wholesale 80x80x38mm AC Axial Fan with 7 Blades | 8038 AC Fan
80×80×38mm

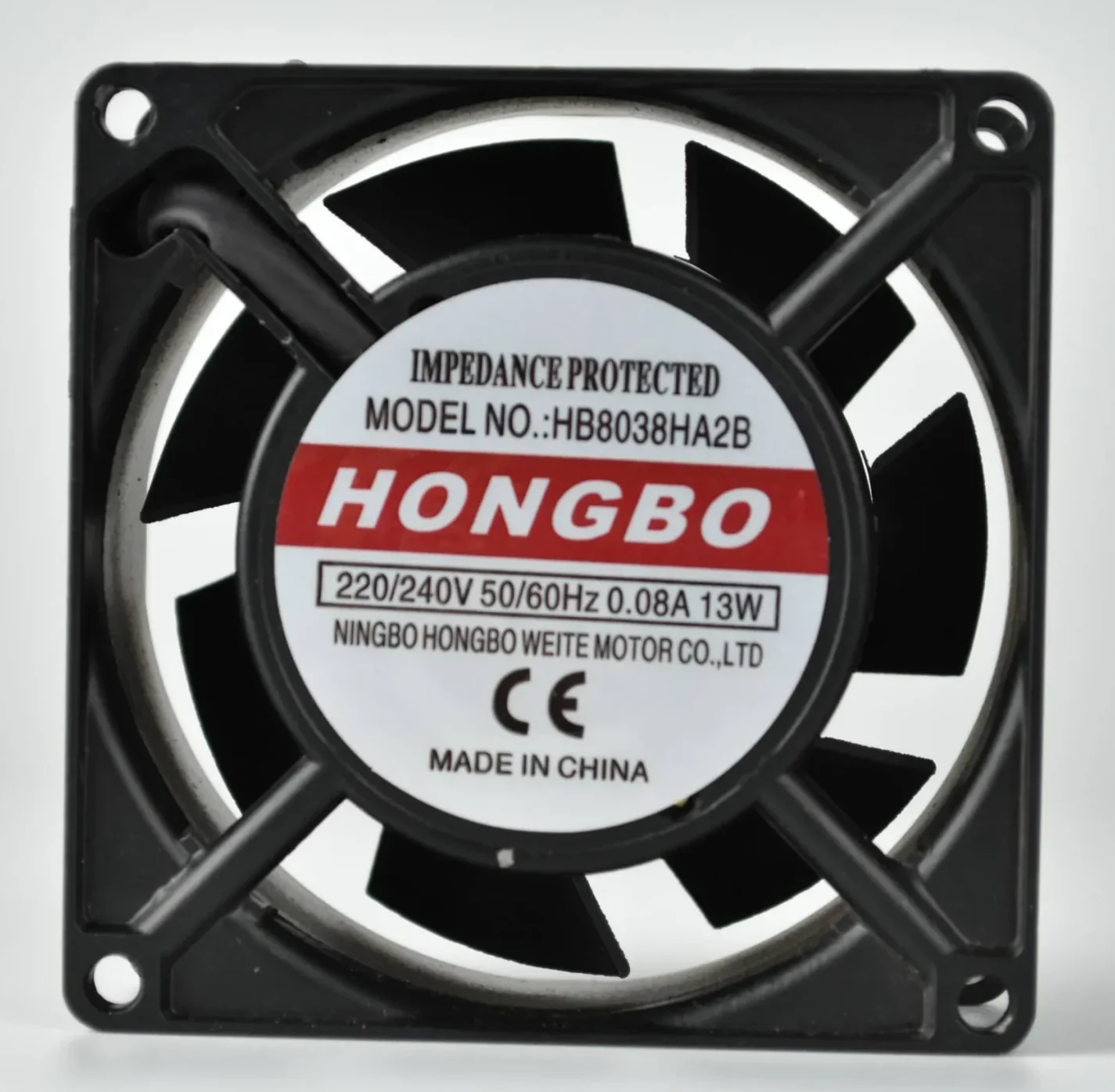

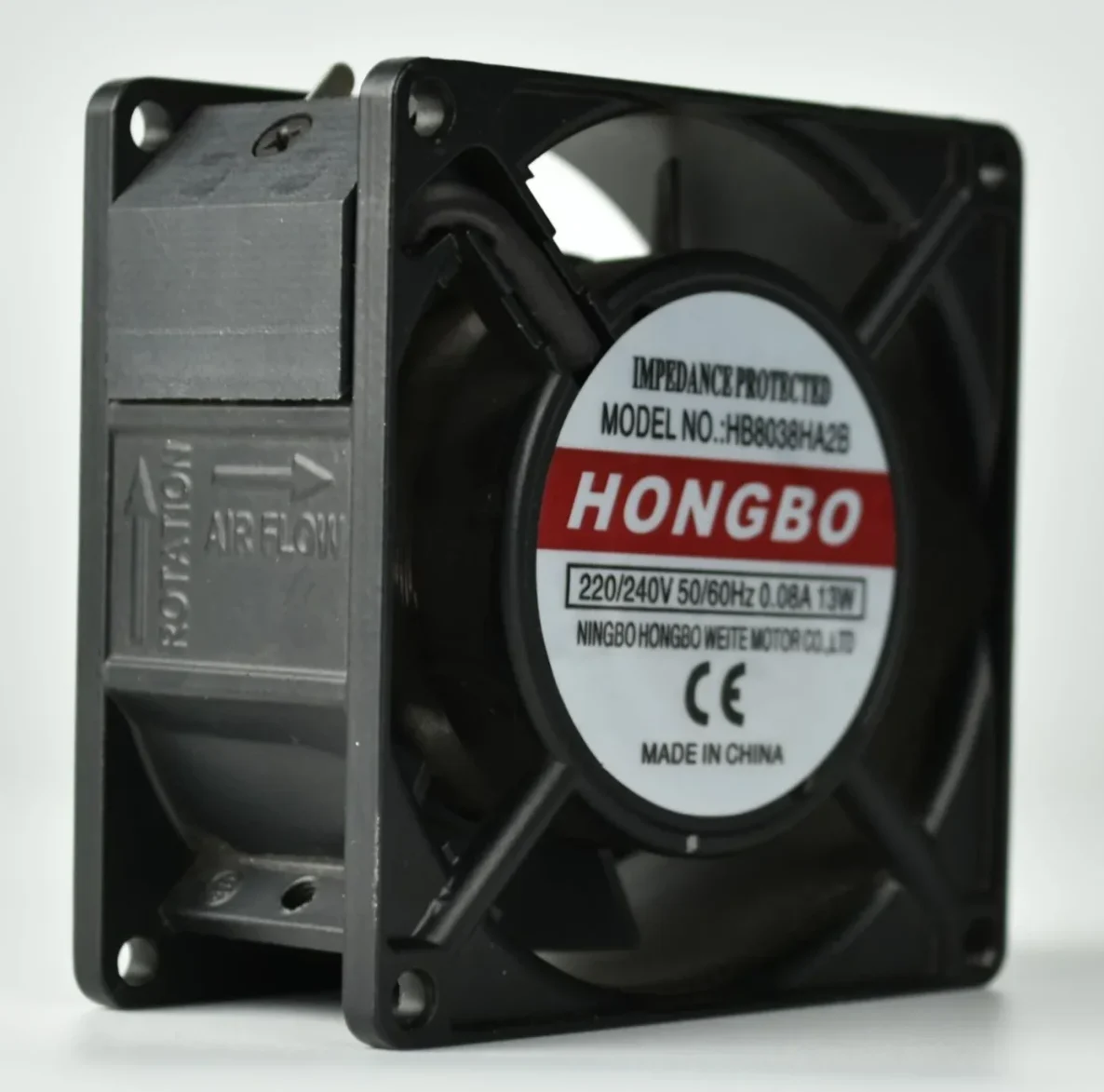

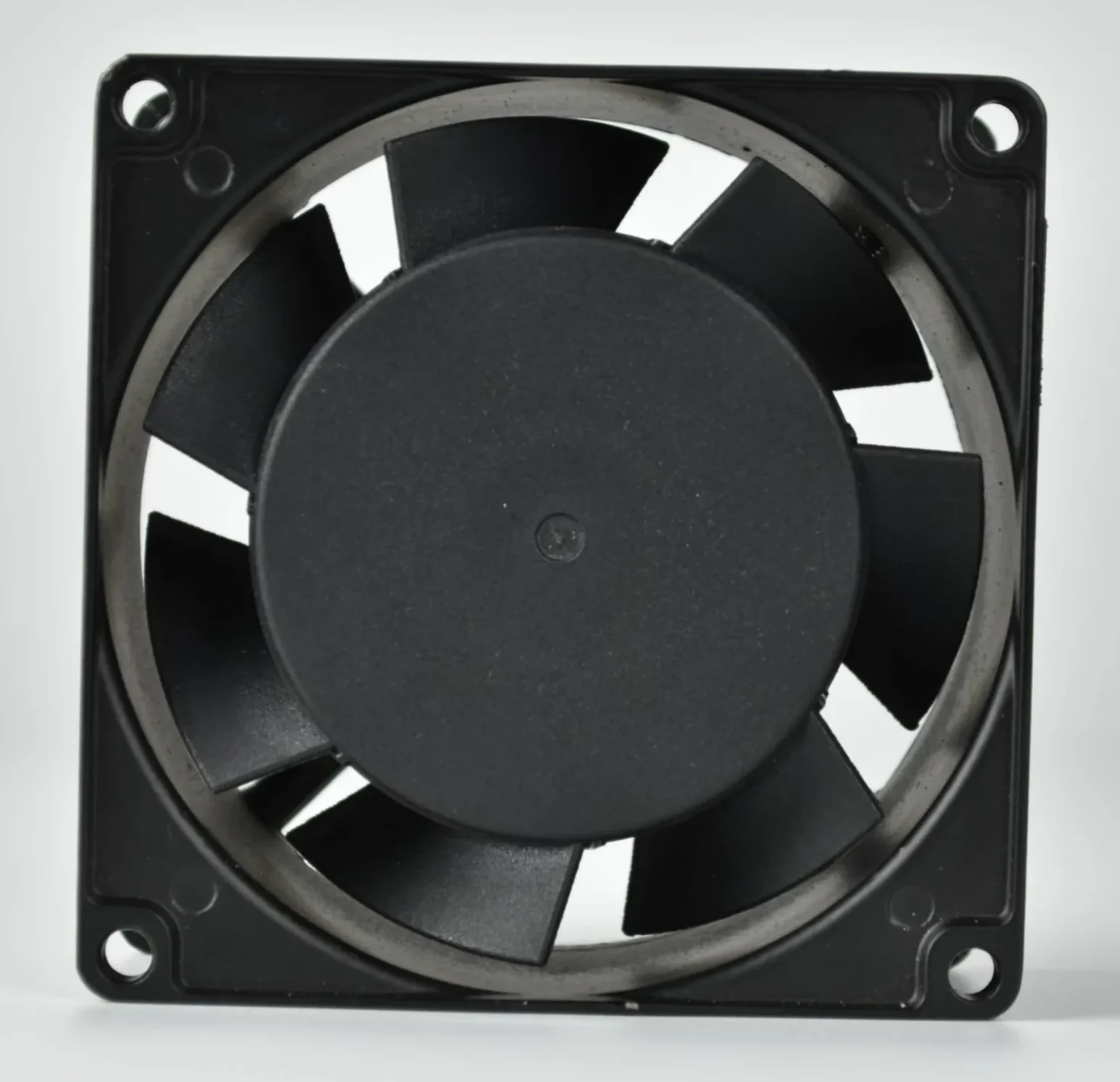

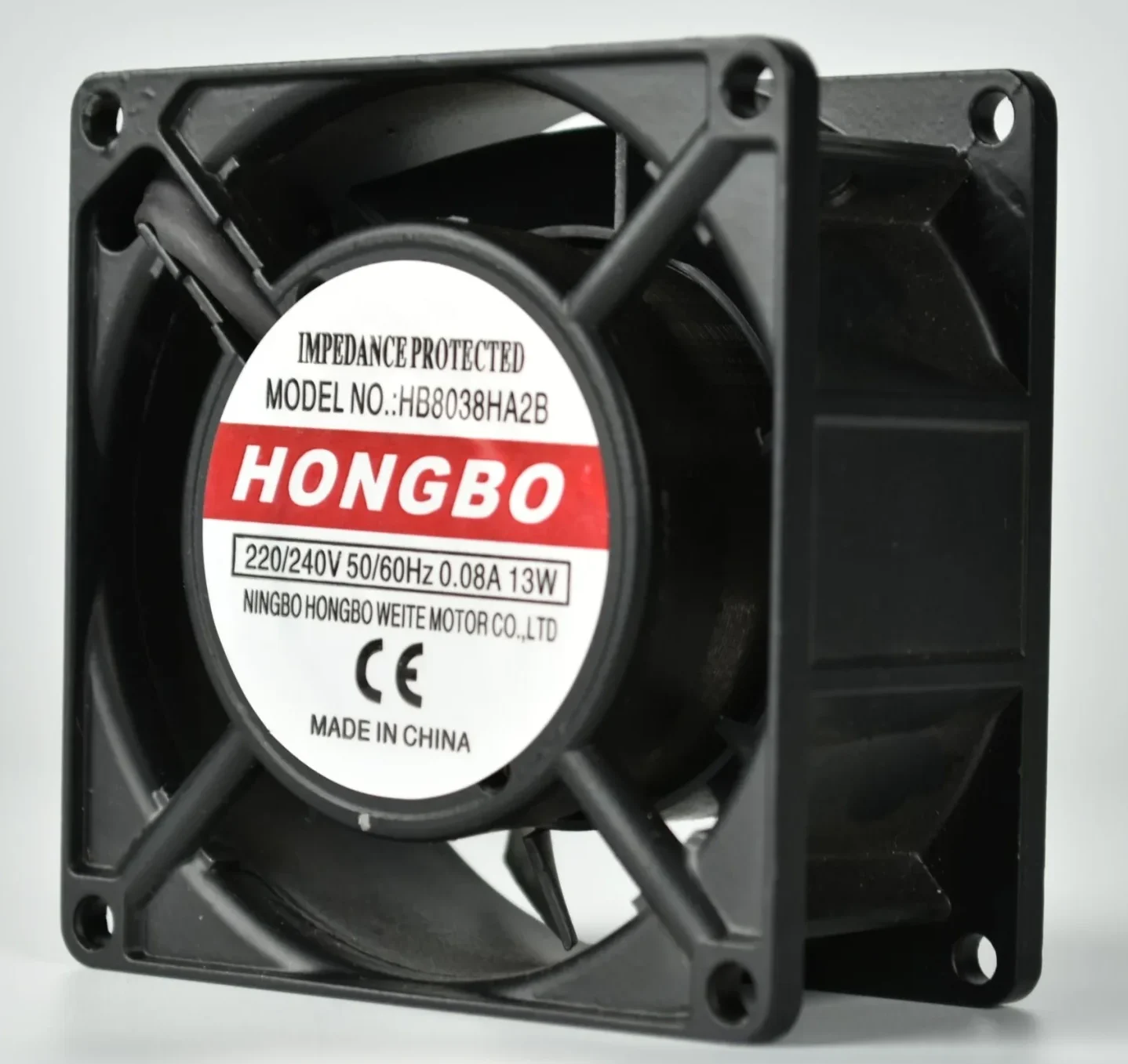

Hongbo HB8038 is an 80×80×38 mm AC axial fan designed for continuous cooling in control cabinets, electrical enclosures, power supplies and industrial equipment. Available in 110V and 220V configurations, it features an aluminum alloy frame, PBT impeller and shaded-pole induction motor for reliable long-term operation.
Key Features
- Aluminum Alloy Frame: Provides structural rigidity and resistance to deformation under sustained operation in industrial environments.
- High Airflow Output: Achieving a air flow of 22-28 CFM, suitable for applications requiring consistent and forceful air movement.
- PBT Thermoplastic Impeller: Impeller material is UL94-V0 rated, offering flame resistance and dimensional stability.
- Dual Voltage Availability: Supports 110V and 220V AC (50/60Hz), compatible with equipment across multiple regions.
- Shaded Pole Induction Motor: Simple motor design with no brushes or commutators, reducing maintenance requirements.
- Ball and Sleeve Bearing Options: Ball bearing variant extends service life; sleeve bearing option available for cost-sensitive applications.
- Wide Operating Temperature: Rated for -10°C to +65°C, suitable for demanding thermal environments.
OEM Customization for 8038 AC Fans
Hongbo Motor supports OEM and ODM orders. Customization options for this 80x80x38mm AC axial fan include:
- Voltage: 110V, 220V, or dual-voltage configurations
- Bearing type: Ball bearing or sleeve bearing
- Lead wire: Length, gauge, and connector type adjusted to specification
- Speed grade: High, medium, or low speed variants available
- Mounting and labeling: Custom packaging, labels, and flange dimensions for OEM requirements
Contact us with your technical requirements for a tailored solution.
8038 AC Fan Specifications
| Model | Bearing System | Voltage VAC | Rreq. Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow | Phase | Capcitor | |
| M³/hr | CFM | ||||||||||
| HB8038HA1B（S)-7P | Ball/Sleeve | 100~125 | 50/60 | 0.2 | 9.5/7 | 2550/3100 | 28/32 | 138/162 | 23/28 | 1 | / |
| HB8038HA2B（S)-7P | Ball/Sleeve | 200~240 | 50/60 | 0.06/0.05 | 9.5/7 | 2550/3100 | 28/32 | 138/162 | 23/28 | 1 | / |
Applications
This 80mm axial fan 8038 is widely used in:
- Electrical control cabinets: Maintains safe operating temperatures for switchgear, PLCs, and control components.
- Industrial enclosures: Provides continuous ventilation in sealed or partially sealed housings.
- Power supply cooling: Supports thermal management in UPS systems and power conversion equipment.
- Telecommunications equipment: Used in base stations and network racks where compact, reliable fans are required.
- Refrigeration and HVAC systems: Assists in condenser and evaporator airflow within commercial refrigeration units.
- Automation and robotics systems: Keeps servo drives and motion control hardware within operating temperature limits.
Why Choose Hongbo Motor
10+ years of experience
Exported to 40+ countries
Stable production
OEM/ODM support
UL certified
Reliable quality
FAQs
Certifications and Quality Assurance
All Hongbo Motor products are manufactured in compliance with international quality and safety standards:
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certification (China Compulsory Certification)
Production follows strict in-process and outgoing quality controls at our 6,000 m² facility in Ningbo, China.
Related AC Axial Fans
More Details
Size:80mmx80mmx38mm
Airflow:122~162m3/hr 22-28CFM
Weight:275g
Noise:26~32dBA
Impeller:PBT Thermoplastic Black,UL94-V0
Frame:Aluminum Alloy
Terminals:0.5mm
Lead Wire:A WG#22 UL 1569(Optional)
Motor:Shaded Pole Induction Motor
Operation Temperature:- 10C~+65℃
Model Parameter
| Parameter | Value |
|---|---|
| Size | 80 × 80 × 38 mm |
| Voltage | 110V / 220V AC (50/60Hz) |
| Airflow | 122–162 m³/hr (22–28 CFM) |
| Noise Level | 26–32 dBA |
| Weight | 275 g |
| Frame Material | Aluminum alloy |
| Impeller Material | PBT thermoplastic, UL94-V0 |
| Motor Type | Shaded pole induction motor |
| Bearing Type | Ball bearing / Sleeve bearing |
| Terminal | 0.5 mm |
| Lead Wire | AWG#22 UL 1569 (optional) |
| Operating Temperature | -10°C to +65°C |
