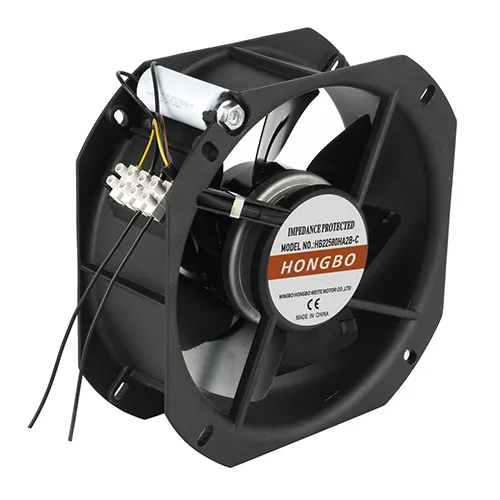

HB22580HA2B-C -
HB22580HA2B-C -
AC22580_2

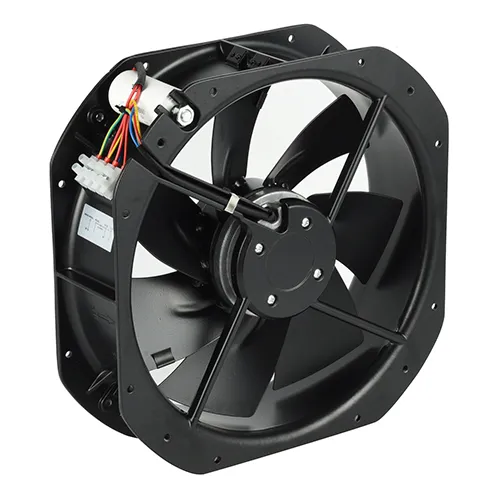

AC22580-7P

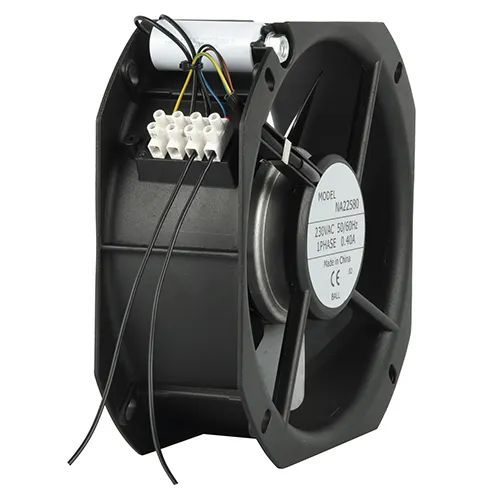

AC22580_3

225ร—225ร—80mm All Metal AC Axial Fan | Industrial 225mm Cooling Fan

The Hongbo 225ร—225ร—80mm All-Metal AC Axial Fan is a heavy-duty industrial cooling fan designed for ventilation and heat dissipation in industrial equipment, power systems, control cabinets, and machinery. Delivering 597โ€“661 CFM of airflow at 2700โ€“3100 RPM, this 225mm AC axial fan features a durable metal impeller and aluminum alloy frame for reliable operation in demanding environments. It is powered by a capacitor-run external rotor induction motor and operates within a temperature range of -10ยฐC to +65ยฐC. Multiple voltage options are available, including 100/125V, 200/240V, and 380/420V AC, with both single-phase and three-phase configurations available.

Key Features

  • All-Metal Construction: Metal impeller and aluminum alloy frame provide excellent durability for continuous industrial use.
  • High Airflow up to 661 CFM: Delivers 597โ€“661 CFM at 2700โ€“3100 RPM for reliable equipment cooling and ventilation.
  • External Rotor Induction Motor: Compact motor design provides stable performance and efficient airflow for industrial applications.
  • Wide Voltage Options: Available in 100/125V, 200/240V, and 380/420V AC, with single-phase and three-phase configurations.
  • Ball Bearing Design: Supports reliable high-speed operation and long service life under continuous-duty conditions.
  • -10ยฐC to +65ยฐC Operation: Suitable for control cabinets, machinery, industrial equipment, and general ventilation systems.
Products Categories
Get A Free Quote
Contact Form

Customization Options

Hongbo Motor supports OEM and ODM orders for this 225ร—225ร—80mm All Metal AC axial fan:

  • Voltage:ย 220V, 380V, or dual-voltage; single-phase or three-phase
  • Capacitor specification:ย Matched to voltage and motor configuration
  • Lead wire:ย Length and connector type to specification
  • Speed grade:ย RPM adjustment available for specific airflow requirements
  • Mounting:ย Flange and bracket configurations adaptable for OEM integration
  • Packaging and labeling:ย Custom branding for volume OEM programs

Specifications

Parameter Value
Size 225 ร— 225 ร— 80 mm
Voltage 100/125V, 200/240V, 380/420V AC (50/60Hz)
Airflow 597โ€“661 CFM (approx. 1,014โ€“1,123 mยณ/h)
Speed 2700โ€“3100 RPM
Noise Level 59โ€“61 dB(A)
Weight 2,112 g
Frame Material Aluminum alloy
Impeller Material Metal
Motor Type External rotor induction motor
Bearing Type Ball bearing
Operating Temperature -10ยฐC to +65ยฐC

Applications

This 225mm axial fan is widely used in:

  • Large industrial enclosures and switchgear rooms:ย Removes heat from high-power electrical distribution equipment operating in confined spaces.
  • Power generation and substation ventilation:ย Provides forced-air cooling for transformer rooms, rectifier banks, and battery charging systems.
  • Manufacturing plant cooling:ย Ventilates production areas with high ambient heat generated by process machinery and furnaces.
  • Data center supplemental ventilation:ย Used for hot-spot cooling and exhaust in server rooms with high rack density.
  • HVAC and industrial air handling:ย Integrated into large duct assemblies and air circulation systems for commercial and industrial buildings.
  • Automotive and heavy equipment facilities:ย Maintains thermal control in paint booths, test cells, and vehicle assembly areas.

Why Choose Hongbo Motor

  • Over 10 years of focused experience in industrial cooling fan manufacturing
  • Products exported to 40+ countries across North America, South America, Europe, and Asia
  • Stable production capacity with consistent lead times
  • Strong OEM/ODM capability for volume and custom orders
  • Reliable quality backed by international certifications

FAQs

What makes the all-metal construction important for this fan?
The iron-leaf impeller and aluminum alloy frame ensure the fan maintains structural integrity in high-temperature environments where plastic components would degrade, making it suitable for operation up to +105ยฐC.
What is an external rotor motor and why is it used?
An external rotor motor integrates the rotor into the impeller hub, resulting in a more compact assembly with efficient power transfer. It also allows better heat dissipation from the motor windings during continuous operation.
What voltage options are available?
Standard models are available in 220V and 380V AC. Please contact us for dual-voltage or custom configurations.
Do you support OEM orders?
Yes. We support customization of voltage, capacitor, lead wire, mounting, and packaging. Contact our sales team with your specifications and order volume.
What is the minimum order quantity?
MOQ varies by model and configuration. Please contact us directly for details.

Model Parameter

Model Bearing System Voltage
VAC
Frequency
Hz
Current
A
Power
W
Speed
RPM
Noise
dB(A)
Air Flow Phase Capacitor
ฮผF/VAC
mยณ/h CFM
HB22580HA1B-C-7P Ball 100/125 50/60 0.68/0.65 60/72 2700/3100 59/61 1014/1123 597/661 1 4/250
HB22580HA2B-C-7P Ball 200/240 50/60 0.25/0.33 54/71 2700/3100 59/61 1014/1123 597/661 1 2.2/500
HB22580HA3B-7P Ball 380/420 50/60 0.25 50 2700/3100 59/61 1014/1123 597/661 3 /
HB22580HA6B-C-7P Ball 380/420 50/60 0.23/0.20 68/76 2700/3100 59/61 1014/1123 597/661 1 1/500

More Details

Size: 225 ร— 225 ร— 80 mm
Airflow: 1014/1123 mยณ/h (597/661 CFM)
Weight: 2,112 g
Noise Level: 59โ€“61 dB(A)
Impeller Material: Iron
Frame Material: Aluminum Alloy
Motor Type: Capacitor-Run External Rotor Induction Motor
Operating Temperature: -10ยฐC to +65ยฐC

Certifications and Quality Assurance

  • UL Certification
  • CE Certification
  • RoHS Compliance
  • 3C Certificationย (China Compulsory Certification)

Manufactured and tested at Hongbo Motorโ€™s 6,000 mยฒ facility in Ningbo, China.
