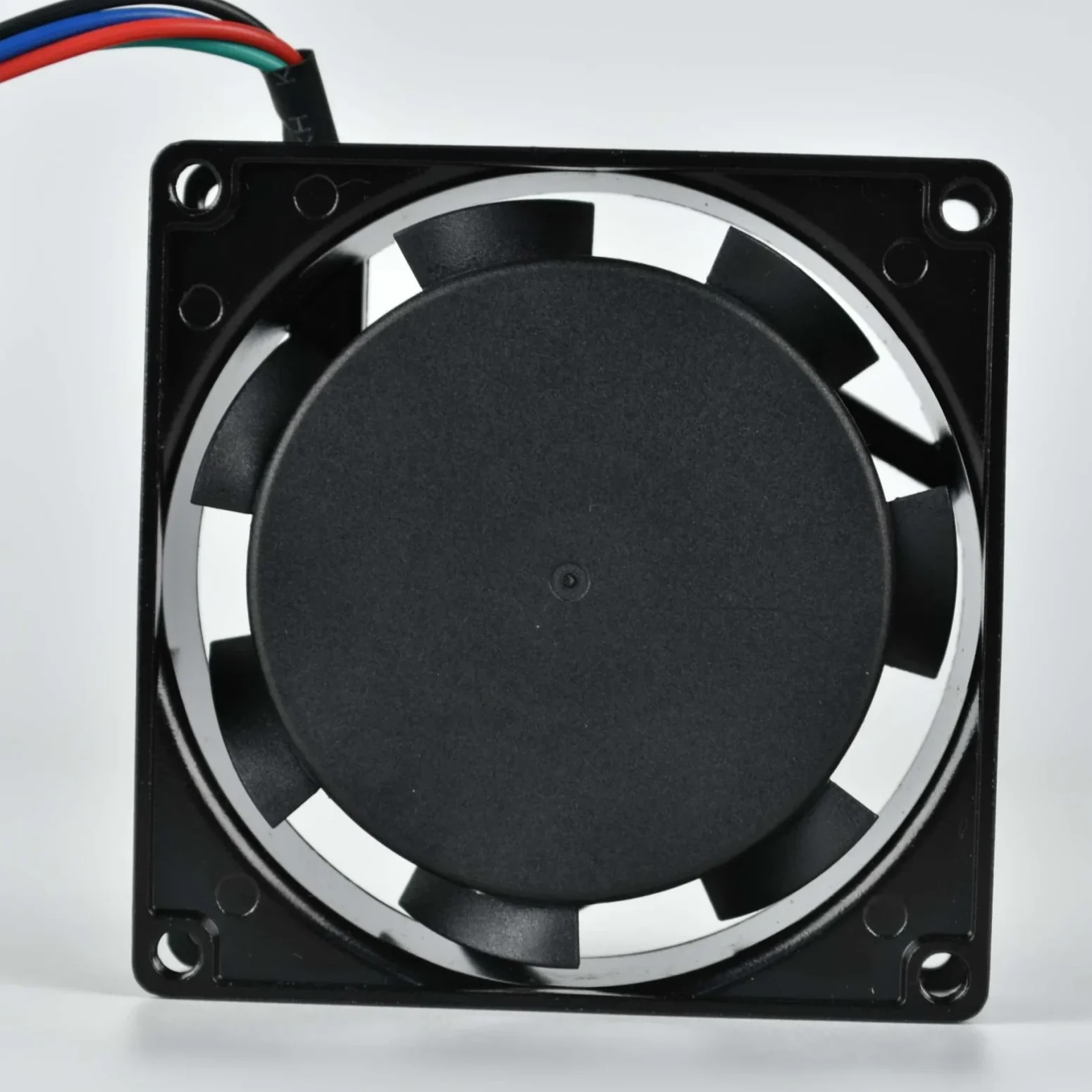

80x80x25mm Dual Voltage AC Axial Fan with 7 Blades | 8025 Dual Voltage AC Fan
Hongbo HB8025 is a 80ร80ร25 mm Dual Voltage AC axial fan designed for continuous cooling in control cabinets, electrical enclosures, power supplies and industrial equipment. Supporting both 110V and 220V inputs, it features an aluminum alloy frame, PBT impeller and shaded-pole induction motor for reliable long-term operation.
Key Features
- Aluminum Alloy Frame:ย Provides structural rigidity and resistance to deformation under sustained operation in industrial environments.
- Optimal Airflow Output: Achieving an air flow of 19-23 CFM, suitable for applications requiring consistent and forceful air movement.
- PBT Thermoplastic Impeller:ย Impeller material is UL94-V0 rated, offering flame resistance and dimensional stability.
- Dual Voltage Input: Supports 110V and 220V AC (50/60Hz), compatible with equipment across multiple regions.
- Shaded Pole Induction Motor: Features a robust, brushless design with dual primary windings to facilitate field-selectable voltage wiring, significantly reducing maintenance requirements.
- Ball and Sleeve Bearing Options:ย Ball bearing variant extends service life; sleeve bearing option available for cost-sensitive applications.
- Wide Operating Temperature:ย Rated for -10ยฐC to +65ยฐC, suitable for demanding thermal environments.
OEM Customization for 8025 Dual Voltage AC Fans
Hongbo Motor supports OEM and ODM orders. Customization options for this 80x80x25mm Dual Voltage AC axial fan include:

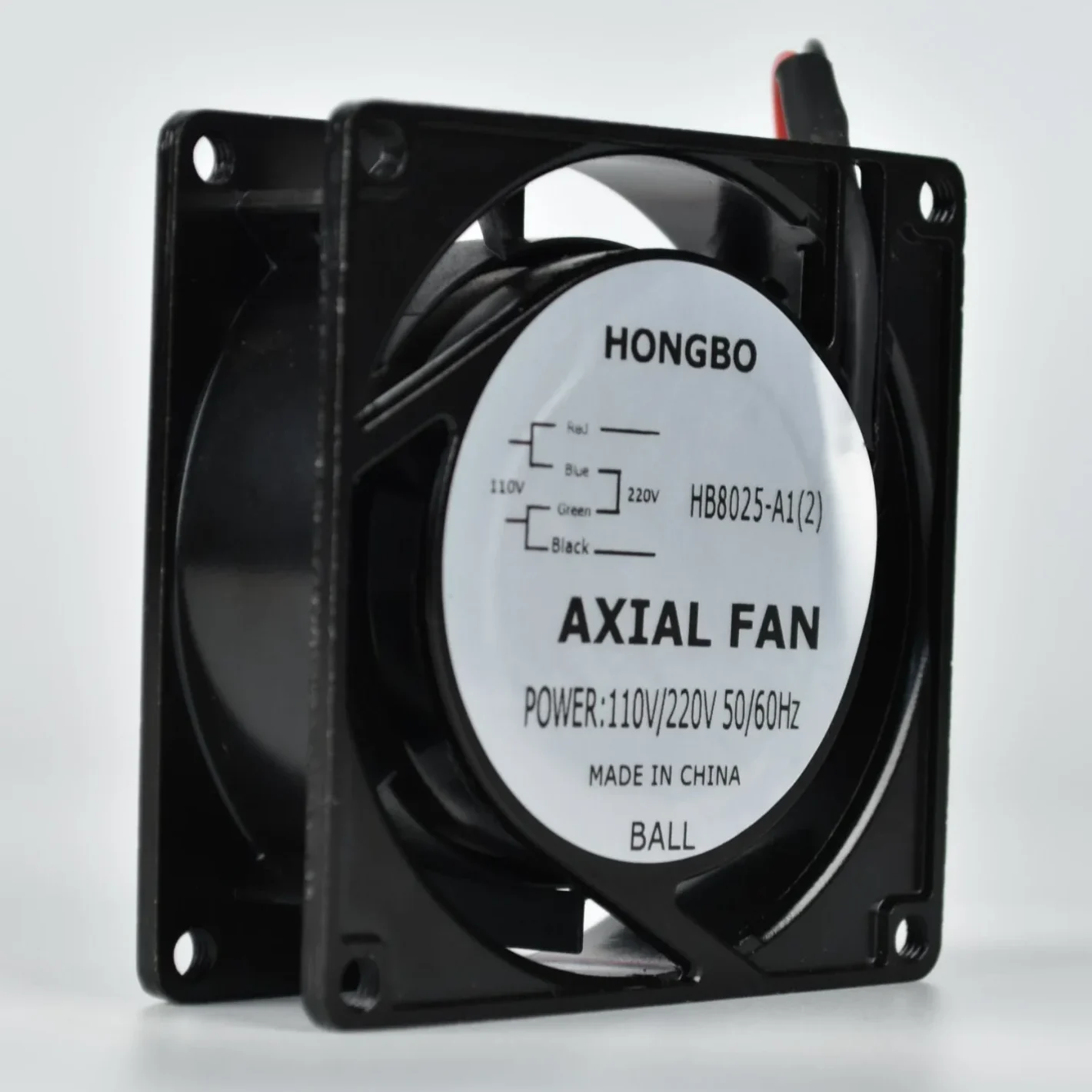

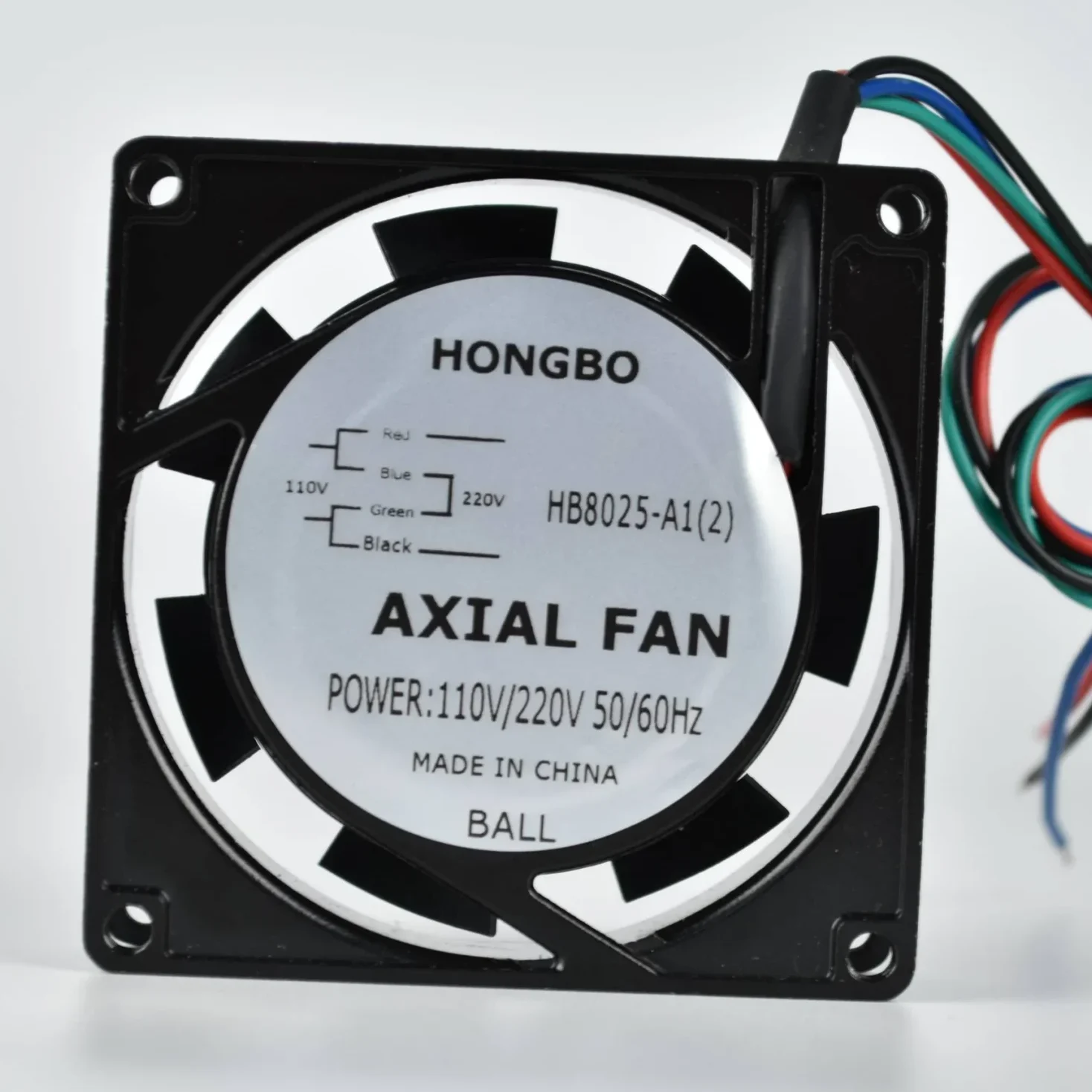

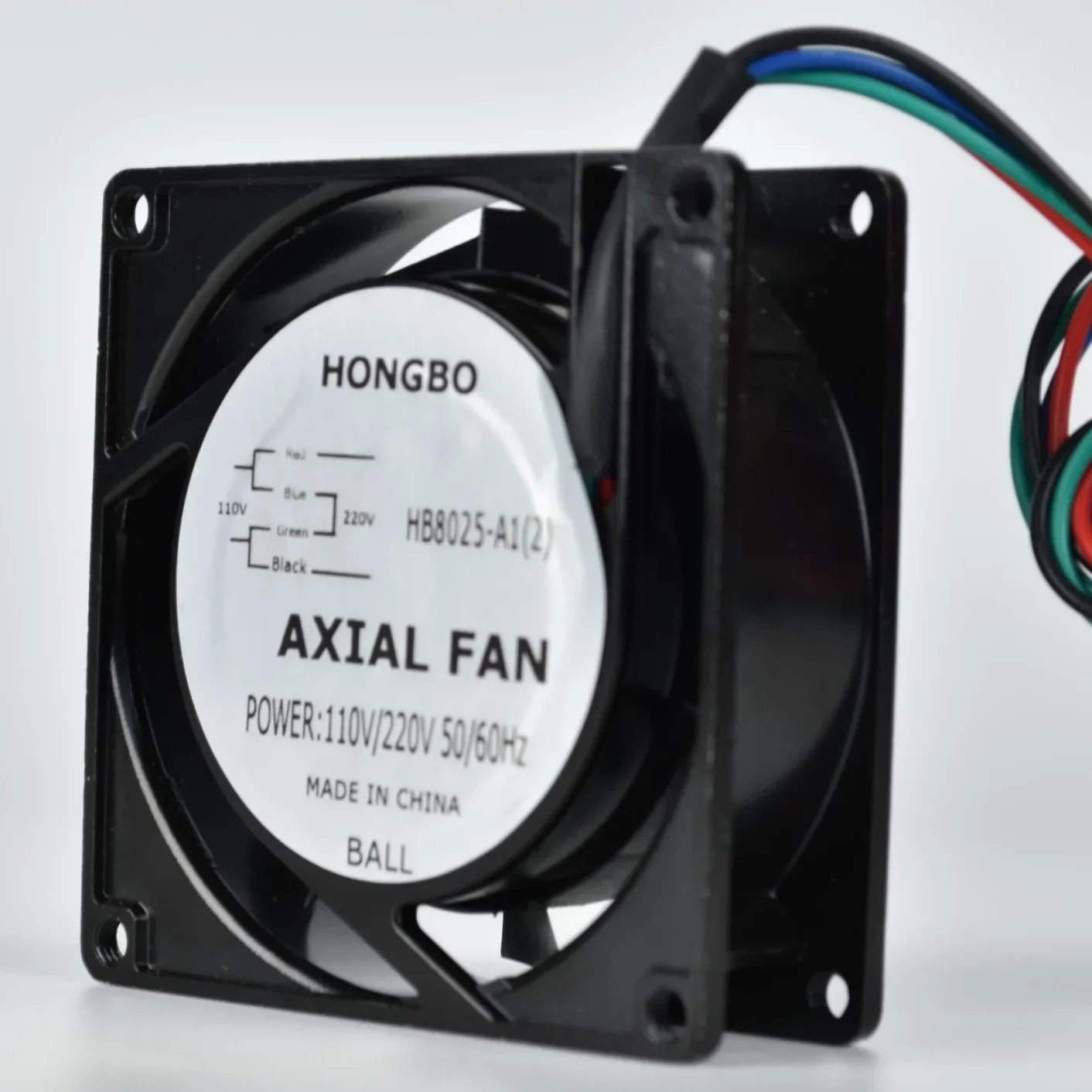

- Voltage Configuration: Available as a standard 4-wire setup for field-selectable dual voltage, or pre-wired at the factory for specific 110V or 220V applications.
- Bearing type:ย Ball bearing or sleeve bearing
- Lead wire:ย Length, gauge, and connector type adjusted to specification
- Speed grade:ย High, medium, or low speed variants available
- Mounting and labeling:ย Custom packaging, labels, and flange dimensions for OEM requirements
Contact us with your technical requirements for a tailored solution.
8025 Dual Voltage AC Fan Specifications
| Model | Bearing System | Voltage | Frequency | Current @110V / @220V | Power | Speed | Noise | Air Flow | Phase | Lead Wire |
|---|---|---|---|---|---|---|---|---|---|---|
| HB8025HA-DV-S | Sleeve | 110/220 VAC | 50/60 Hz | 0.15 / 0.09 A | 15/12 W | 2300/2750 RPM | 26/23 dB(A) | 19/23 CFM | 1 | 4-Wire |
| HB8025HA-DV-B | Ball | 110/220 VAC | 50/60 Hz | 0.15 / 0.09 A | 15/12 W | 2300/2750 RPM | 26/23 dB(A) | 19/23 CFM | 1 | 4-Wire |
Applications
This 80mm dual voltage axial fan 8025 is widely used in:
- Electrical Control Cabinets: Maintains safe operating temperatures for switchgear, PLCs, and control components, making it ideal for globally exported machinery supporting both 110V and 220V grids.
- Industrial Enclosures: Provides continuous ventilation in sealed or partially sealed housings on factory floors.
- Power Supply & Conversion Equipment: Supports thermal management in industrial UPS systems, inverters, and power transformers.
- Commercial Equipment & Vending: Used in ATMs, ticketing machines, and vending enclosures where direct AC mains power is utilized.
- Refrigeration and HVAC Systems: Assists in condenser and evaporator airflow within commercial refrigeration units, display cases, and wine coolers.
- Automation Control Panels: Keeps entire automation and motor control centers (MCC) properly ventilated to protect internal servo drives and logic controllers from overheating.
Why Choose Hongbo Motor
10+ years of experience
Exported to 40+ countries
Stable production
OEM/ODM support
UL certified
Reliable quality
FAQs
Certifications and Quality Assurance
All Hongbo Motor products are manufactured in compliance with international quality and safety standards:
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certificationย (China Compulsory Certification)
Production follows strict in-process and outgoing quality controls at our 6,000 mยฒ facility in Ningbo, China.
Related AC Axial Fans
More Details
Size: 80mmx80mmx25mm
Airflow: 19-23CFM
Weight: 260g
Noise: 23~26dBA
Impeller: PBT UL94-V0
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: 4-Wire Dual Voltage Connection, AWG22 UL1569
Motor: Shaded Pole Induction Motor
Operation Temperature:- 10C~+65โ
Phase: Single Phase
