92x92x38mm AC Axial Fan with 7 Blades | High-Performance 9238 AC Fan

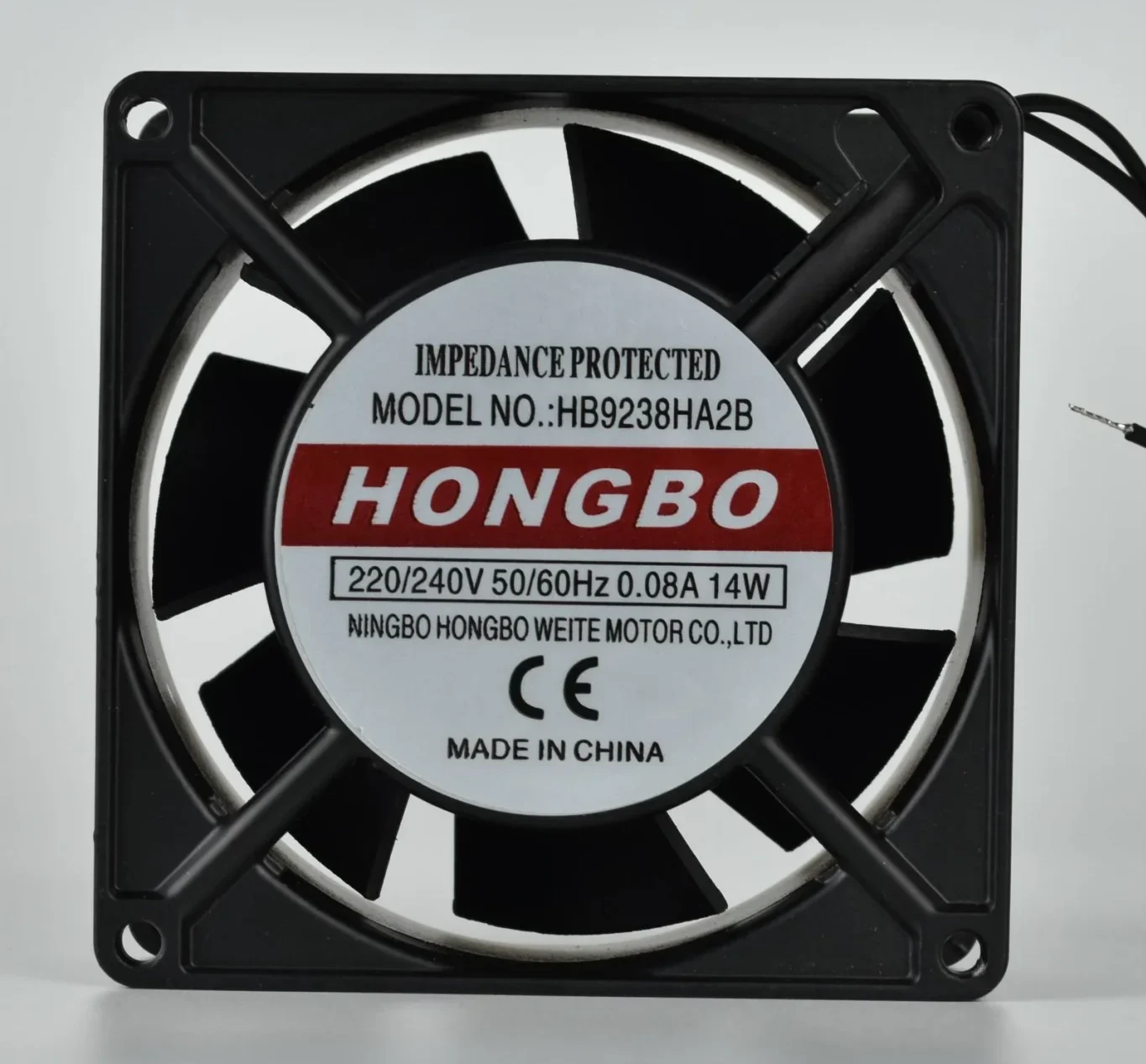

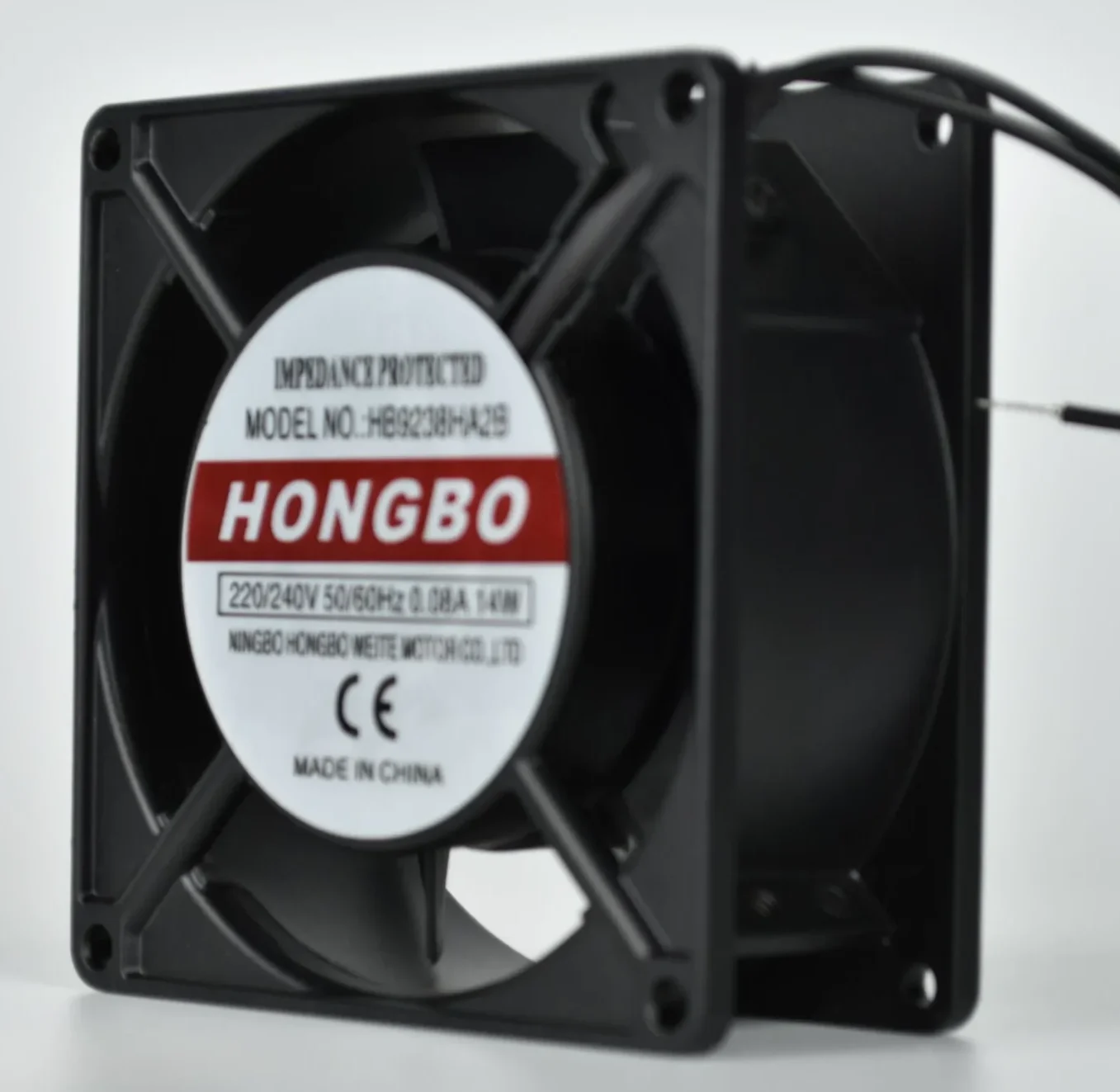

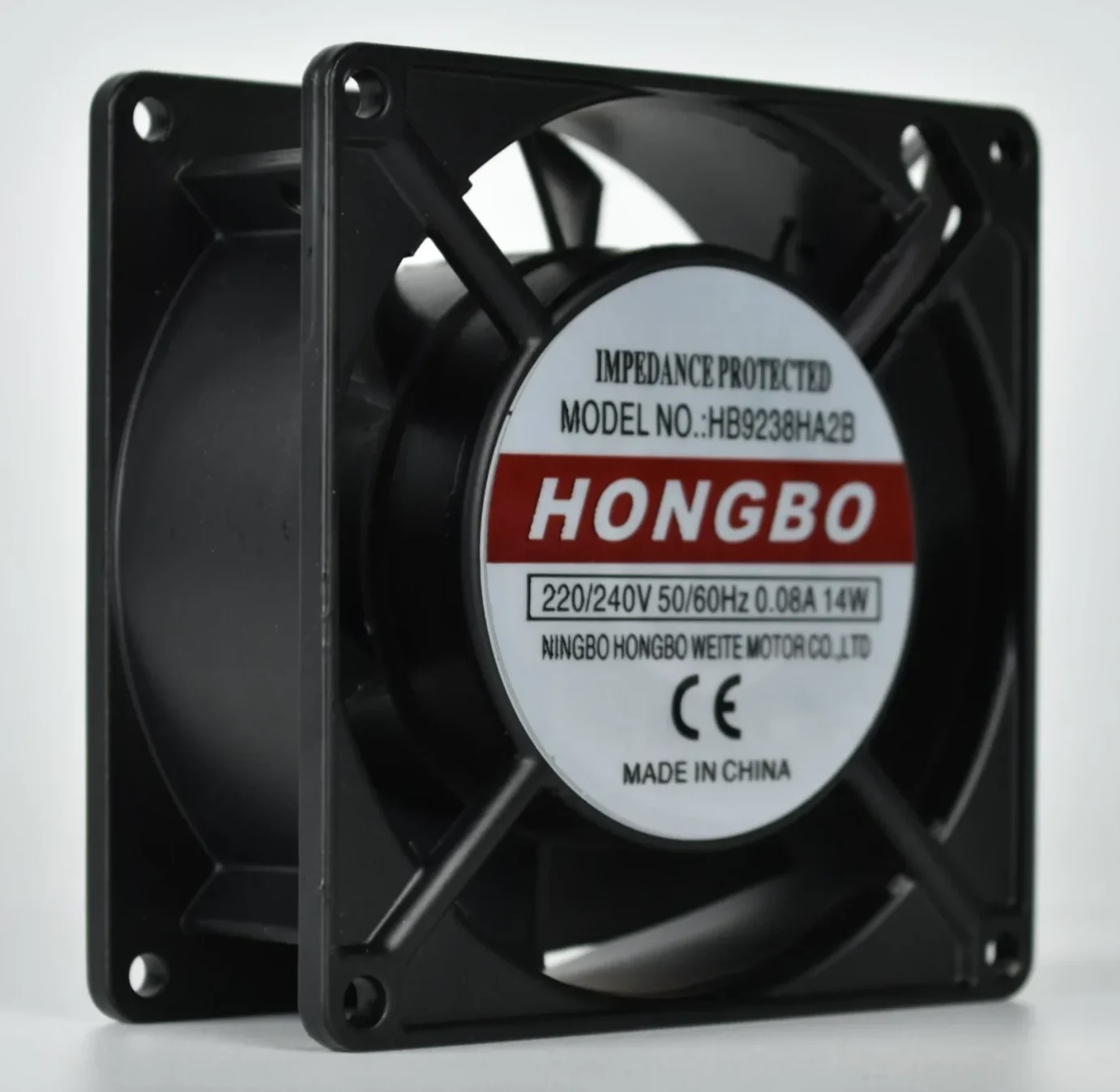

Hongbo HB9238 is a 92×92×38 mm AC axial fan designed for continuous cooling in control cabinets, electrical enclosures, power supplies and industrial equipment. Available in 100V, 125V, 200V and 240V configurations, it features an aluminum alloy frame, PBT impeller and shaded-pole induction motor for reliable long-term operation.
Key Features
- Aluminum Alloy Frame: Provides structural rigidity and resistance to deformation under sustained operation in industrial environments.
- High Airflow Output: Achieving a air flow of 38-46 CFM, suitable for applications requiring consistent and forceful air movement.
- PBT Thermoplastic Impeller: Impeller material is UL94-V0 rated, offering flame resistance and dimensional stability.
- Dual Voltage Availability: Supports 100V, 125V, 200V and 240V AC (50/60Hz), compatible with equipment across multiple regions.
- Shaded Pole Induction Motor: Simple motor design with no brushes or commutators, reducing maintenance requirements.
- Ball and Sleeve Bearing Options: Ball bearing variant extends service life; sleeve bearing option available for cost-sensitive applications.
- Wide Operating Temperature: Rated for -10°C to +65°C, suitable for demanding thermal environments.
OEM Customization for 9238 AC Fans
Hongbo Motor supports OEM and ODM orders. Customization options for this 92x92x38mm AC axial fan include:
- Voltage: 100V, 125V, 200V, 240V, or dual-voltage configurations
- Bearing type: Ball bearing or sleeve bearing
- Lead wire: Length, gauge, and connector type adjusted to specification
- Speed grade: High, medium, or low speed variants available
- Mounting and labeling: Custom packaging, labels, and flange dimensions for OEM requirements
Contact us with your technical requirements for a tailored solution.
9238 AC Fan Specifications
| Model | Bearing System | Voltage | Frequency | Current | Power | Speed | Noise | Airflow | Phase | Capacitor |
|---|---|---|---|---|---|---|---|---|---|---|
| VAC | Hz | A | W | RPM | dB(A) | CFM | μF/VAC | |||
| HB9238HA1S | Sleeve | 100/125 | 50/60 | 0.23/0.18 | 17/13 | 2350/2750 | 26/31 | 39/46 | 1 | / |
| HB9238HA2S | 200/240 | 50/60 | 0.06/0.05 | 10/8 | 2350/2750 | 26/31 | 39/46 | 1 | / | |
| HB9238HA1B | Ball | 100/125 | 50/60 | 0.23/0.18 | 17/13 | 2350/2750 | 26/31 | 39/46 | 1 | / |
| HB9238HA2B | 200/240 | 50/60 | 0.06/0.05 | 10/8 | 2350/2750 | 26/31 | 39/46 | 1 | / | |
| HB9238MA1S | Sleeve | 100/125 | 50/60 | 0.12/0.09 | 9/7 | 2250/2600 | 26/28 | 38/44 | 1 | / |
| HB9238MA2S | 200/240 | 50/60 | 0.07/0.06 | 11/8 | 2250/2600 | 26/28 | 38/44 | 1 | / | |
| HB9238MA1B | Ball | 100/125 | 50/60 | 0.12/0.09 | 9/7 | 2250/2600 | 26/28 | 38/44 | 1 | / |
| HB9238MA2B | 200/240 | 50/60 | 0.07/0.06 | 11/8 | 2250/2600 | 26/28 | 38/44 | 1 | / |
Applications
This 92mm axial fan 9238 is widely used in:
- Electrical control cabinets: Maintains safe operating temperatures for switchgear, PLCs, and control components.
- Industrial enclosures: Provides continuous ventilation in sealed or partially sealed housings.
- Power supply cooling: Supports thermal management in UPS systems and power conversion equipment.
- Telecommunications equipment: Used in base stations and network racks where compact, reliable fans are required.
- Refrigeration and HVAC systems: Assists in condenser and evaporator airflow within commercial refrigeration units.
- Automation and robotics systems: Keeps servo drives and motion control hardware within operating temperature limits.
Why Choose Hongbo Motor
10+ years of experience
Exported to 40+ countries
Stable production
OEM/ODM support
UL certified
Reliable quality
FAQs
Certifications and Quality Assurance
All Hongbo Motor products are manufactured in compliance with international quality and safety standards:
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certification (China Compulsory Certification)
Production follows strict in-process and outgoing quality controls at our 6,000 m² facility in Ningbo, China.
Related AC Axial Fans
More Details
Size:92mmx92mmx38mm
Airflow:38-46CFM
Weight:360g
Noise:26~31dBA
Impeller:PBT Thermoplastic Black,UL94-V0
Frame:Aluminum Alloy
Terminals:0.5mm
Lead Wire:A WG#22 UL 1569(Optional)
Motor:Shaded Pole Induction Motor
Operation Temperature:- 10C~+65℃
Model Parameter
| Parameter | Value |
|---|---|
| Size | 92 × 92 × 38 mm |
| Voltage | 100V / 125V / 200V / 240V |
| Frequency | 50/60 Hz |
| Airflow | 38–46 CFM |
| Noise Level | 26–31 dBA |
| Weight | 360 g |
| Frame Material | Aluminum alloy |
| Impeller Material | PBT thermoplastic, UL94-V0 |
| Motor Type | Shaded pole induction motor |
| Bearing Type | Ball bearing / Sleeve bearing |
| Terminal | 0.5 mm |
| Lead Wire | AWG#22 UL 1569 (optional) |
| Operating Temperature | -10°C to +65°C |
